AD7579SQ/883B

ProducentAnalog DevicesEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7579SQ_883B_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7579SQ/883B

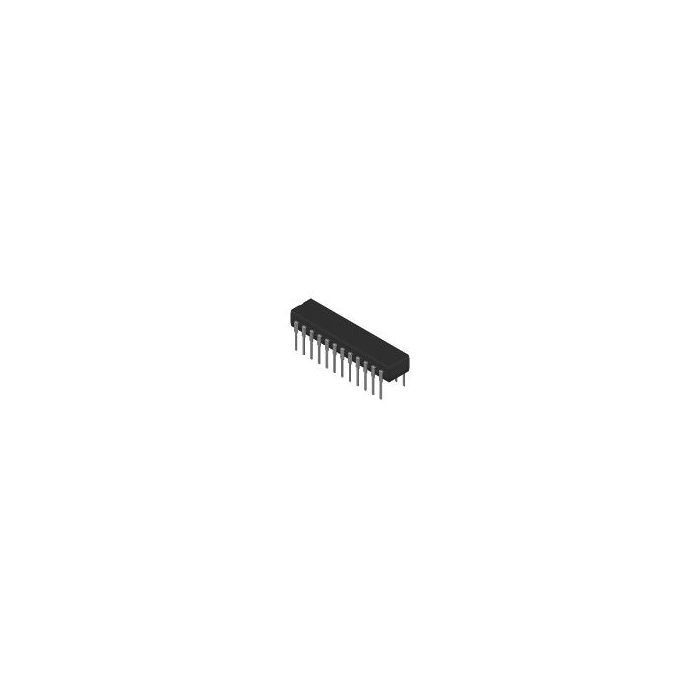

1-Channel Single ADC SAR 50ksps 10-bit Parallel 24-Pin CDIP Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 233
  • Inventory 1
  • PCNs 7
  • MaskPart AD7579SQ883B%
  • IntroductionDate Sep 06, 1996

Parametry

  • Architecture SAR
  • Converter Type General Purpose
  • Differential Input Yes
  • Differential Nonlinearity ±0.9LSB
  • Digital Interface Type Parallel
  • Digital Supply Support No
  • Full Scale Error ±5LSB
  • Input Signal Type Single-Ended|Differential
  • Input Type Voltage
  • Input Voltage 2.5V/5V|±2.5V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Negative Supply Voltage (V) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Positive Supply Voltage (V) 5.25
  • Maximum Power Dissipation (mW) 50
  • Maximum Single Supply Voltage (V) 5.25
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Negative Supply Voltage (V) N/A
  • Minimum Operating Temperature (°C) -55
  • Minimum Positive Supply Voltage (V) 4.75
  • Minimum Single Supply Voltage (V) 4.75
  • No Missing Codes (bit) N/A
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 10bit
  • Sample and Hold Yes
  • Sampling Rate 50ksps
  • Signal to Noise Ratio 58dB(Typ)
  • Single-Ended Input Yes
  • Supplier Temperature Grade Military
  • Typical Dual Supply Voltage (V) N/R
  • Typical Power Dissipation (mW) N/A
  • Typical Single Supply Voltage (V) 5
  • Voltage Reference External
  • Voltage Supply Source Single

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC SAR 50ksps 10-bit Parallel 24-Pin CDIP Tube
