AD7306ANZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD7306ANZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD7306ANZ

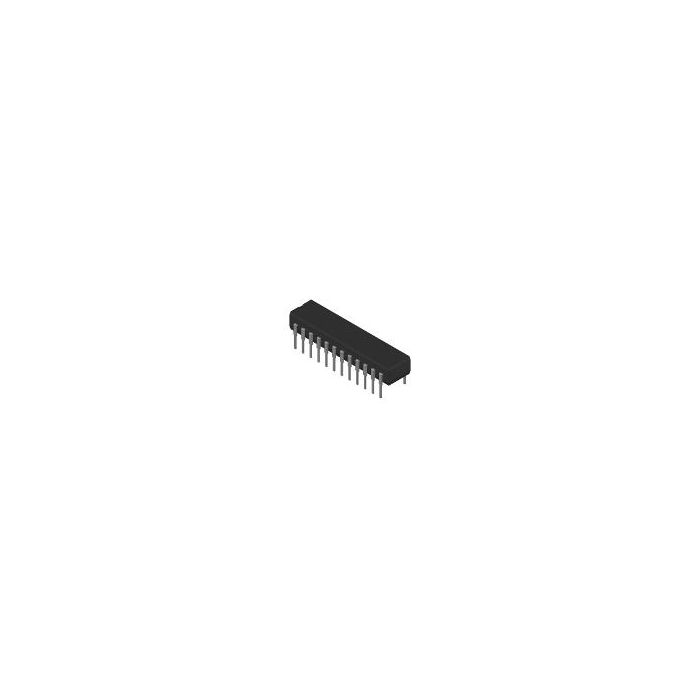

Triple Transmitter Dual Receiver RS-232/RS-422 24-Pin PDIP N Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 1
  • PCNs 14
  • MaskPart AD7306ANZ%
  • IntroductionDate Sep 06, 1996

Parametry

  • Data Rate N/A
  • Data Transmission Topology Point-to-Point|Multidrop
  • Driving Mode 3-State
  • Function Line Transceiver
  • Interface Standards EIA-232|EIA-422|RS-232|RS-422
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Operating Temperature (°C) 85
  • Maximum Single Supply Voltage (V) 5.25
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) 15
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 4.75
  • Minimum Storage Temperature (°C) -65
  • Number of Drivers per Line 1
  • Number of Receiver Enables 1
  • Number of Receivers 2
  • Number of Receivers per Line 1@RS-232|10@RS-422
  • Number of Transceivers 1
  • Number of Transmitter Enables 1
  • Number of Transmitters 3
  • Power Supply Type Single
  • Receiver Communication Type RS-232|RS-422
  • Receiver Signal Type Single-Ended|Differential
  • Supplier Temperature Grade Industrial
  • Transmitter Communication Type RS-232|RS-422
  • Transmitter Signal Type Single-Ended|Differential
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Triple Transmitter Dual Receiver RS-232/RS-422 24-Pin PDIP N Tube
