AD7193BRUZ
| Do pobrania | Download |
|---|---|

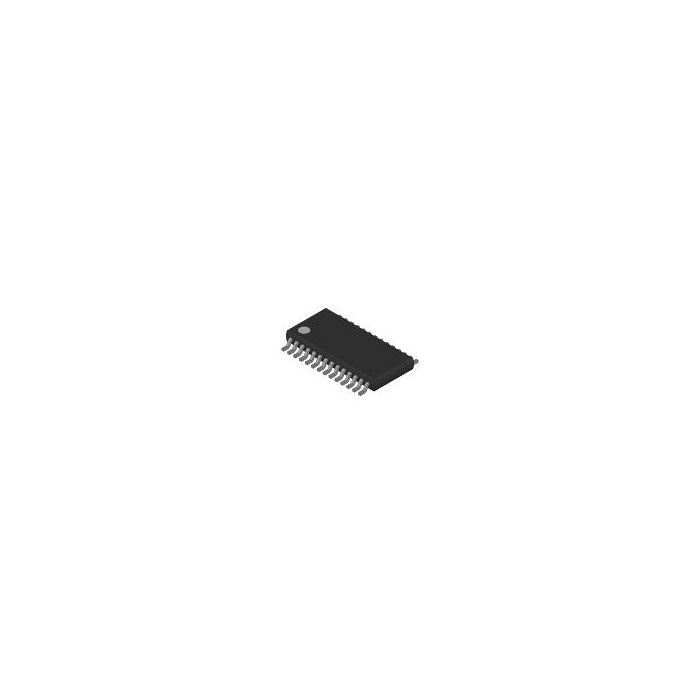

| Main description | Octal Channel Single ADC Delta-Sigma 4.8ksps 24-bit Serial 28-Pin TSSOP Tube |
Octal Channel Single ADC Delta-Sigma 4.8ksps 24-bit Serial 28-Pin TSSOP Tube
Informacje podstawowe
- ProducentAnalog Devices
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 4
- Inventory 7
- PCNs 6
- MaskPart AD7193BRUZ%
- IntroductionDate Jul 01, 2009
Parametry
- Architecture Delta-Sigma
- Converter Type Temperature Measurement
- Differential Input Yes
- Differential Nonlinearity N/A
- Digital Interface Type Serial (3-Wire, SPI, QSPI, Microwire)
- Digital Supply Support Yes
- Full Scale Error -0.39%FSR(Typ)
- Input Signal Type Pseudo-Differential|Differential
- Input Type Voltage
- Input Voltage ±2.5V
- Integral Nonlinearity Error ±30ppm of FSR
- Maximum Dual Supply Voltage (V) N/R
- Maximum Power Dissipation (mW) N/A
- Maximum Single Supply Voltage (V) 5.25
- Maximum Storage Temperature (°C) 150
- Minimum Dual Supply Voltage (V) N/R
- Minimum Single Supply Voltage (V) 3
- Minimum Storage Temperature (°C) -65
- No Missing Codes (bit) 24
- Number of ADCs 1
- Number of Input Channels 8|4
- Polarity of Input Voltage Bipolar
- Resolution 24bit
- Sample and Hold No
- Sampling Rate 4.8ksps
- Signal to Noise Ratio N/A
- Single-Ended Input No
- Supplier Temperature Grade N/A
- Typical Dual Supply Voltage (V) N/R
- Typical Power Dissipation (mW) N/A
- Typical Single Supply Voltage (V) 3.3|5
- Voltage Reference External
- Voltage Supply Source Analog and Digital
