AD678KNZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD678KNZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD678KNZ

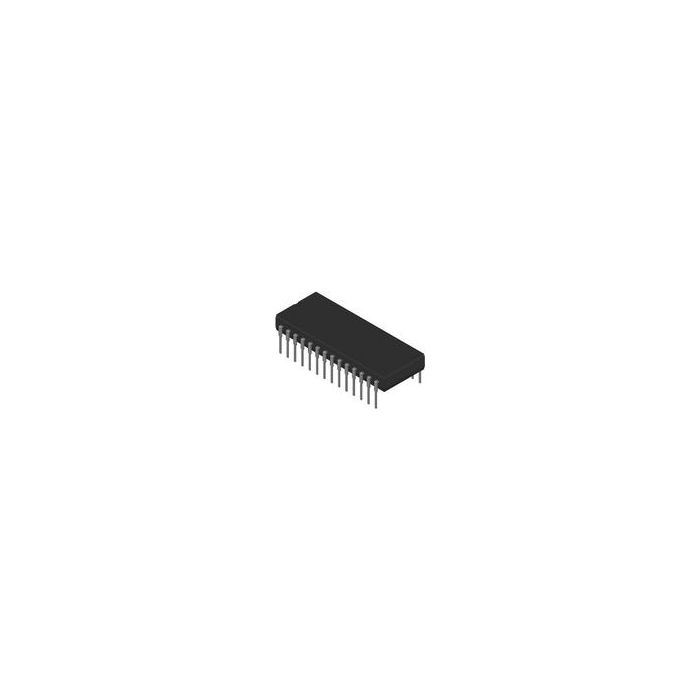

1-Channel Single ADC Flash 200ksps 12-bit Parallel 28-Pin PDIP W Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 2
  • Inventory 1
  • PCNs 13
  • MaskPart AD678KNZ%
  • IntroductionDate Oct 28, 1995

Parametry

  • Architecture Flash
  • Converter Type General Purpose
  • Differential Input No
  • Differential Nonlinearity N/A
  • Digital Interface Type Parallel
  • Digital Supply Support Yes
  • Full Scale Error ±6LSB
  • Input Signal Type Single-Ended
  • Input Type Voltage
  • Input Voltage 10V|±5V
  • Integral Nonlinearity Error ±1LSB
  • Maximum Dual Supply Voltage (V) ±12.6
  • Maximum Negative Supply Voltage (V) 12.6
  • Maximum Operating Temperature (°C) 70
  • Maximum Positive Supply Voltage (V) 12.6/5.5
  • Maximum Power Dissipation (mW) 745
  • Maximum Single Supply Voltage (V) N/R
  • Minimum Dual Supply Voltage (V) ±11.4
  • Minimum Negative Supply Voltage (V) 11.4
  • Minimum Operating Temperature (°C) 0
  • Minimum Positive Supply Voltage (V) 11.4/4.5
  • Minimum Single Supply Voltage (V) N/R
  • No Missing Codes (bit) 12
  • Number of ADCs 1
  • Number of Input Channels 1
  • Polarity of Input Voltage Unipolar|Bipolar
  • Resolution 12bit
  • Sample and Hold Yes
  • Sampling Rate 200ksps
  • Signal to Noise Ratio N/A
  • Single-Ended Input Yes
  • Supplier Temperature Grade Commercial
  • Typical Dual Supply Voltage (V) ±12
  • Typical Power Dissipation (mW) 560
  • Typical Single Supply Voltage (V) N/R
  • Voltage Reference Internal|External
  • Voltage Supply Source Dual

Więcej informacji

Do pobrania Download
Main description 1-Channel Single ADC Flash 200ksps 12-bit Parallel 28-Pin PDIP W Tube
