AD641ANZ

ProducentAnalog DevicesEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD641ANZ_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD641ANZ

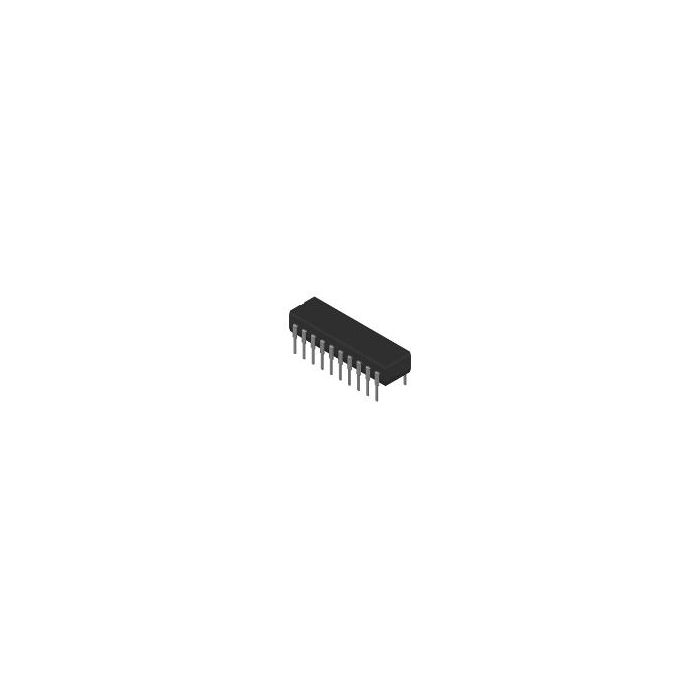

SP Amp LOG Amp Single ±7.5V 20-Pin PDIP N Tube

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 4
  • Inventory 3
  • PCNs 13
  • MaskPart AD641ANZ%
  • IntroductionDate Aug 21, 1996

Parametry

  • Maximum Dual Supply Voltage (V) ±7.5
  • Maximum Input Bias Current (uA) 25@±5V
  • Maximum Input Offset Voltage (mV) 0.2@±5V
  • Maximum Input Resistance (MOhm) 0.5(Typ)@±5V
  • Maximum Operating Supply Voltage (V) ±7.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Supply Current (mA) N/A
  • Maximum Supply Voltage Range (V) 15 to 18
  • Maximum Voltage Gain (dB) N/A
  • Maximum Voltage Gain Range (dB) N/A
  • Minimum CMRR (dB) N/A
  • Minimum CMRR Range (dB) N/A
  • Minimum DC Continuous Isolation Voltage (V) N/A
  • Minimum Dual Supply Voltage (V) ±4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum PSRR (dB) N/A
  • Minimum Single Supply Voltage (V) N/R
  • Number of Channels per Chip 1
  • Number of Elements per Chip 1
  • Output Type Differential
  • Power Supply Type Dual
  • Rail to Rail N/A
  • Supplier Temperature Grade Industrial
  • Type Logarithmic Amplifier
  • Typical Dual Supply Voltage (V) ±5
  • Typical Gain Bandwidth Product (MHz) N/A
  • Typical Output Current (mA) 2.3(Max)@±5V
  • Typical Single Supply Voltage (V) N/R

Więcej informacji

Do pobrania Download
Main description SP Amp LOG Amp Single ±7.5V 20-Pin PDIP N Tube
