AD534TH/QMLV

ProducentAnalog DevicesEURoHSNo (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
AD534TH_QMLV_ANALOG_DEVICES
0,00 zł

Zapytaj o ten produkt

Opis / AD534TH/QMLV

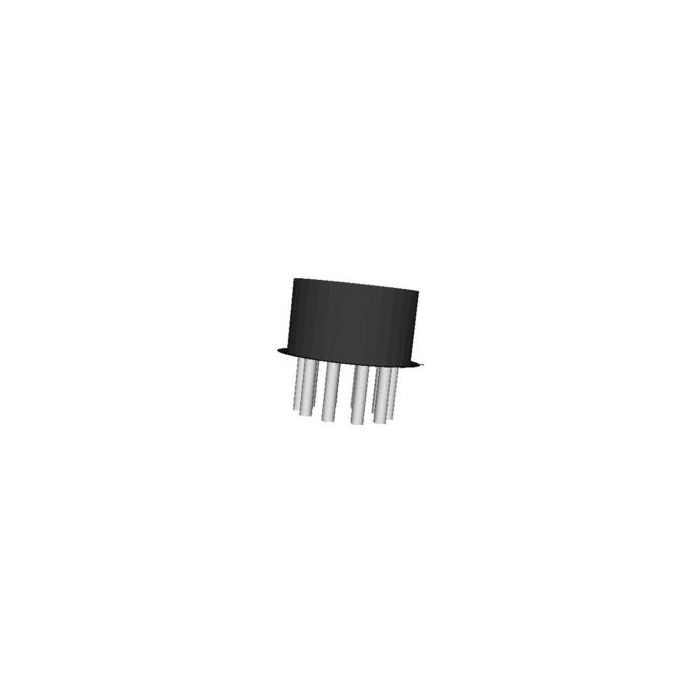

Analog Multiplier/Divider 4Bit 10-Pin TO-100

Informacje podstawowe

  • ProducentAnalog Devices
  • EURoHSNo (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • PCNs 7
  • MaskPart AD534THQMLV%
  • IntroductionDate Oct 26, 1995

Parametry

  • High Level Output Current (mA) N/A
  • Logic Family N/A
  • Logic Function Analog Multiplier/Divider
  • Low Level Output Current (mA) N/A
  • Maximum Dual Supply Voltage (V) ±22
  • Maximum Operating Frequency (MHz) N/A
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) 500
  • Maximum Propagation Delay Time (ns) N/A
  • Maximum Single Supply Voltage (V) N/R
  • Maximum Supply Current (A) N/A
  • Minimum Dual Supply Voltage (V) ±8
  • Minimum Operating Temperature (°C) -55
  • Minimum Single Supply Voltage (V) N/R
  • Number of Bits 4
  • Number of Elements per Chip 1
  • Operating Supply Voltage (V) ±15
  • Output Type Single
  • Power Supply Type Dual
  • Supplier Temperature Grade Military
  • Typical 3dB Bandwidth (MHz) N/A
  • Typical Dual Supply Voltage (V) ±15
  • Typical Single Supply Voltage (V) N/R

Więcej informacji

Do pobrania Download
Main description Analog Multiplier/Divider 4Bit 10-Pin TO-100
