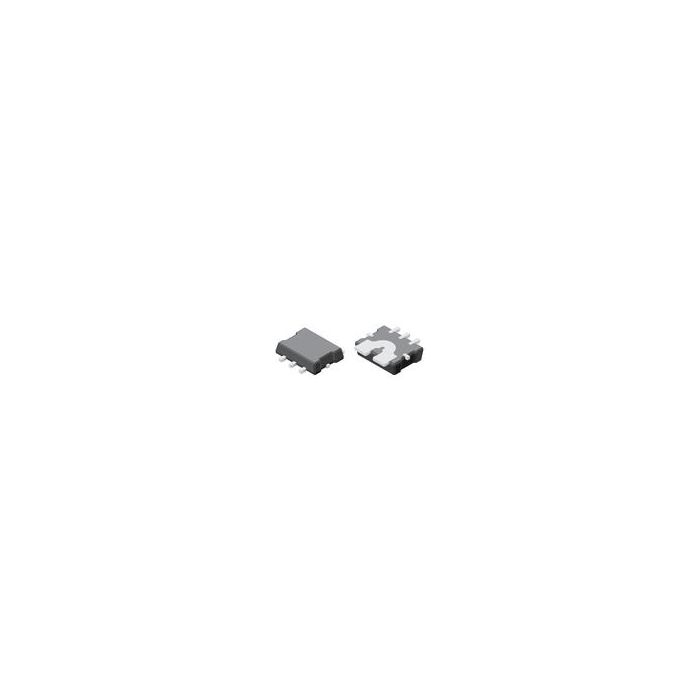

ACS780LLSTR-100U-T

ProducentAllegro MicroSystemsEURoHSYes (2011/65/EU, 2015/863).
Powiadom mnie gdy produkt będzie dostępny
SKU
ACS780LLSTR-100U-T_ALLEGRO_MICROSYSTEMS
0,00 zł

Zapytaj o ten produkt

Opis / ACS780LLSTR-100U-T

Current Sensor Current Sensor AC/DC Current 5V 7-Pin PSOF T/R

Informacje podstawowe

  • ProducentAllegro MicroSystems
  • EURoHSYes (2011/65/EU, 2015/863)

Informacje dodatkowe

  • Inventory 2
  • PCNs 1
  • MaskPart ACS780LLSTR100UT%
  • IntroductionDate Jan 01, 2000
  • SupplierUrl http://www.allegromicro.com/SearchResults.aspx?q=ACS780LLSTR-100U-T

Parametry

  • Accuracy (%) N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Output Voltage (V) 25
  • Maximum Sensing Current (A) 100
  • Maximum Storage Temperature (°C) 165
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -20
  • Minimum Storage Temperature (°C) -65
  • Module/IC Classification IC
  • Operating Frequency (kHz) N/A
  • Sensing Current Type AC|DC
  • Sensitivity (mV/A) 40
  • Supplier Temperature Grade Automotive
  • Type N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Response Time (us) 3.6

Więcej informacji

Do pobrania Download
Main description Current Sensor Current Sensor AC/DC Current 5V 7-Pin PSOF T/R
