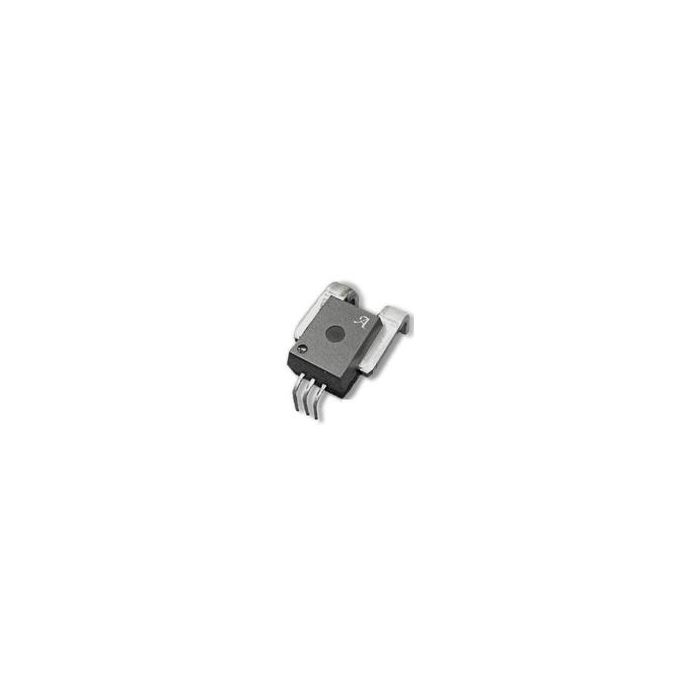

ACS772KCB-150B-PFF-T

ProducentAllegro MicroSystemsEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
ACS772KCB-150B-PFF-T_ALLEGRO_MICROSYSTEMS
0,00 zł

Zapytaj o ten produkt

Opis / ACS772KCB-150B-PFF-T

Open Loop Current Sensor AC/DC Current 5V Automotive 5-Pin Tube

Informacje podstawowe

  • ProducentAllegro MicroSystems
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • PCNs 1
  • MaskPart ACS772KCB150BPFFT%
  • SupplierUrl http://www.allegromicro.com/SearchResults.aspx?q=ACS772KCB-150B-PFF-T

Parametry

  • Accuracy (%) ±1.7
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Output Voltage (V) 6.5
  • Maximum Sensing Current (A) ±150
  • Maximum Storage Temperature (°C) 165
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Module/IC Classification IC
  • Operating Frequency (kHz) 200
  • Sensing Current Type AC|DC
  • Sensitivity (mV/A) 13.33
  • Supplier Temperature Grade N/A
  • Type Open Loop
  • Typical Operating Supply Voltage (V) 5
  • Typical Response Time (us) 2.5

Więcej informacji

Do pobrania Download
Main description Open Loop Current Sensor AC/DC Current 5V Automotive 5-Pin Tube
