ACS108-8SUN-TR

ProducentSTMicroelectronicsEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
ACS108-8SUN-TR_STMICROELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / ACS108-8SUN-TR

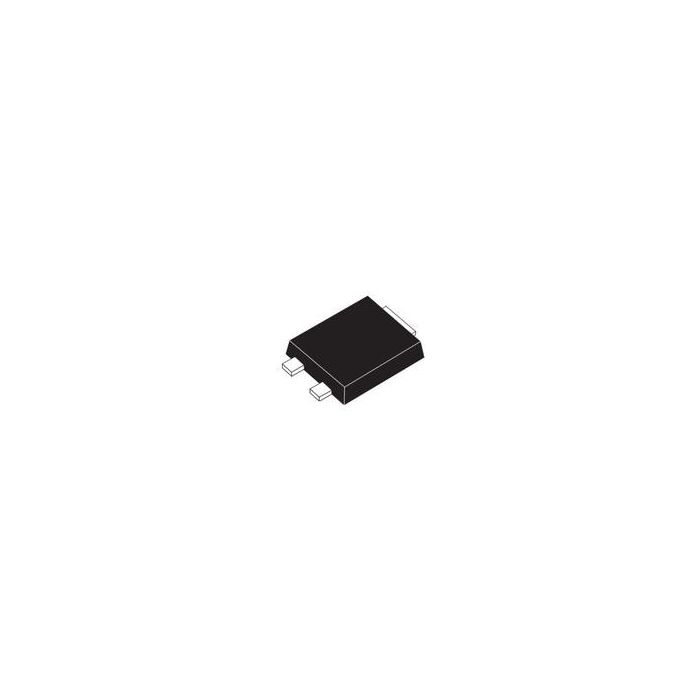

TRIAC 800V 0.8A(RMS) 13.7A 3-Pin SMB Flat T/R

Informacje podstawowe

  • ProducentSTMicroelectronics
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Inventory 4
  • PCNs 11
  • MaskPart ACS1088SUN%

Parametry

  • AC Switch Yes
  • Maximum Gate Trigger Current (mA) 10
  • Maximum Gate Trigger Voltage (V) 1
  • Maximum Holding Current (mA) 10
  • Maximum Operating Temperature (°C) 125
  • Maximum Rate of Rise of Off-State Voltage (V/us) 2000(Min)
  • Maximum Rate of Rise of On-State Current (A/us) 100
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -30
  • Minimum Storage Temperature (°C) -40
  • Operating Junction Temperature (°C) -30 to 125
  • Peak On-State Voltage (V) 1.3@1.1A
  • RMS On-State Current (A) 0.8
  • Rated Average On-State Current (A) N/A
  • Repetitive Peak Forward Blocking Voltage (V) 800
  • Repetitive Peak Off-State Current (mA) 0.002
  • Repetitive Peak Reverse Voltage (V) 800
  • Supplier Temperature Grade N/A
  • Surge Current Rating (A) 13.7
  • Tradename ACS™

Więcej informacji

Do pobrania Download
Main description TRIAC 800V 0.8A(RMS) 13.7A 3-Pin SMB Flat T/R
