93LC56C-I/OT

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
93LC56C-I_OT_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 93LC56C-I/OT

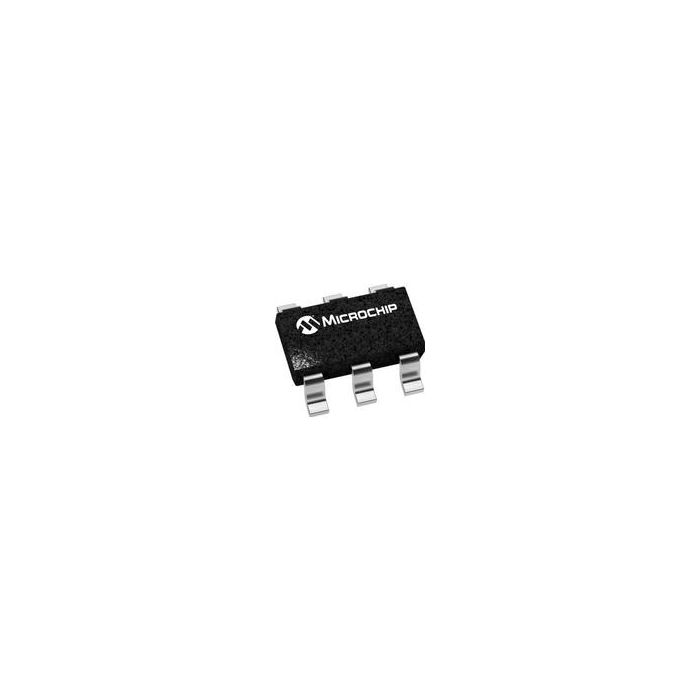

EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 6-Pin SOT-23

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 27
  • PCNs 54
  • MaskPart 93LC56C%IOT

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 2K
  • Density in Bits (bit) 2048
  • Hardware Data Protection Yes
  • Interface Type Serial-Microwire
  • Maximum Access Time (ns) 200
  • Maximum Operating Current (mA) 2
  • Maximum Operating Frequency (MHz) 3
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Organization 256x8|128x16
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-Microwire 2K-bit 256 x 8/128 x 16 3.3V/5V 6-Pin SOT-23
