74VHC4052AFT(BE)

ProducentToshibaEURoHSYes (2002/95/EC)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
74VHC4052AFT(BE)_TOSHIBA
0,00 zł

Zapytaj o ten produkt

Opis / 74VHC4052AFT(BE)

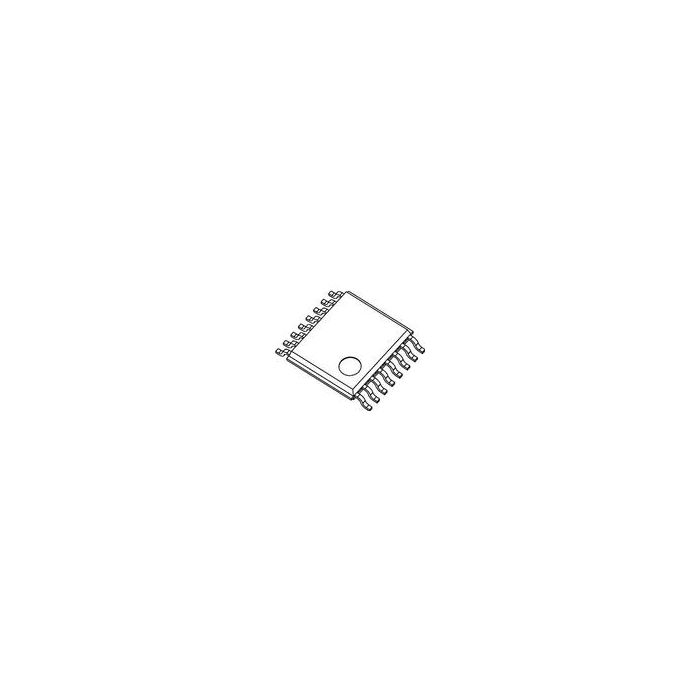

Analog Multiplexer Triple 2:1 Automotive 16-Pin TSSOP-B T/R

Informacje podstawowe

  • ProducentToshiba
  • EURoHSYes (2002/95/EC)
  • Automotive Yes

Informacje dodatkowe

  • PCNs 5
  • MaskPart 74VHC4052AFTBE%

Parametry

  • Chip Enable Signals Yes
  • Configuration Triple 2:1
  • Input Signal Type Single
  • Maximum Data Rate (Mbps) N/A
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum High Level Output Current (mA) 25
  • Maximum Low Level Output Current (mA) 25
  • Maximum On Resistance (Ohm) 86@3V
  • Maximum On Resistance Range (Ohm) 80 to 100
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) 180
  • Maximum Propagation Delay Bus to Bus (ns) 6@5V|9@3.3V|12@2.5V
  • Maximum Single Supply Voltage (V) 5.5
  • Maximum Supply Current (mA) N/A
  • Maximum Turn-Off Time (ns) 25@2.5V
  • Maximum Turn-On Time (ns) 25@2.5V
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Temperature (°C) -40
  • Minimum Single Supply Voltage (V) 2
  • Multiplexer Architecture 4:1
  • Number of Channels per Chip 2
  • Number of Inputs per Chip 8
  • Number of Outputs per Chip 2
  • Output Signal Type Single
  • Polarity N/A
  • Power Supply Type Single
  • Propagation Delay Test Condition (pF) 50
  • Special Features N/A
  • Supplier Temperature Grade Automotive
  • Switch Architecture N/R
  • Switch Control Logic N/R
  • Switch Normal Position N/R
  • Type Analog Multiplexer
  • Typical Dual Supply Voltage (V) N/R
  • Typical Single Supply Voltage (V) 3|5
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Analog Multiplexer Triple 2:1 Automotive 16-Pin TSSOP-B T/R
