74VHC164FT(BE)

Opis / 74VHC164FT(BE)

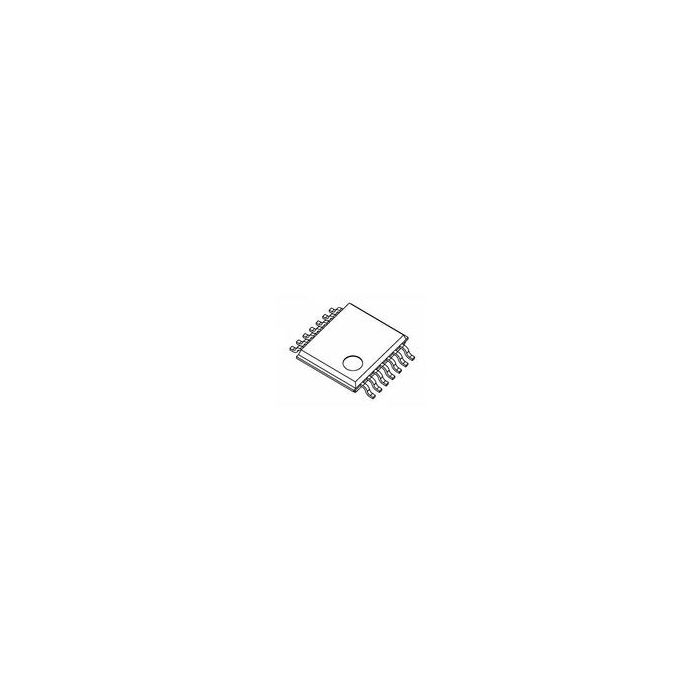

Shift Register Single 8-Bit Serial to Parallel Automotive 14-Pin TSSOP-B T/R

Informacje podstawowe

Absolute Propagation Delay Time (ns) 20.5
Direction Type Uni-Directional
Logic Family VHC
Logic Function Shift Register
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Temperature (°C) 125
Maximum Propagation Delay Time @ Maximum CL (ns) 16.3@3V to 3.6V|11@4.5V to 5.5V
Maximum Quiescent Current (mA) 0.004
Maximum Storage Temperature (°C) 150
Minimum Operating Supply Voltage (V) 2
Minimum Operating Temperature (°C) -40
Minimum Storage Temperature (°C) -65
Number of Count Input Enables 0
Number of Element Inputs 2
Number of Element Outputs 8
Number of Elements per Chip 1
Number of Selection Inputs per Element 0
Number of Stages 8
Operation Mode Serial to Parallel
Output Type N/A
Parallel Enable Input No
Preset Type N/A
Process Technology CMOS
Propagation Delay Test Condition (pF) 50
Reset Type N/A
Supplier Temperature Grade N/A
Terminal Count Output No
Tolerant I/Os (V) N/A
Triggering Type Positive-Edge
Type N/R
Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania	Download
Main description	Shift Register Single 8-Bit Serial to Parallel Automotive 14-Pin TSSOP-B T/R
