74LVT244WMX

ProducentON SemiconductorEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74LVT244WMX_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / 74LVT244WMX

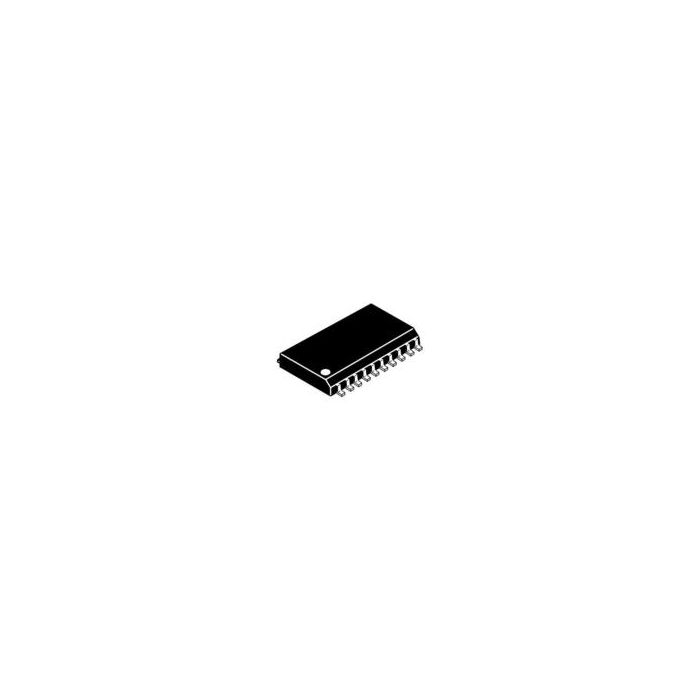

Buffer/Line Driver 8-CH Non-Inverting 3-ST BiCMOS 20-Pin SOIC W T/R

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 60
  • Inventory 5
  • PCNs 30
  • MaskPart 74LVT244WM%
  • IntroductionDate Aug 02, 1999
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=74LVT244WMX&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 5.3
  • Bus Hold No
  • Input Signal Type Single-Ended
  • Logic Family LVT
  • Logic Function Buffer/Line Driver
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 64
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 85
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 4.2@2.7V|3.9@3.3V
  • Maximum Quiescent Current (uA) N/A
  • Maximum Supply Current (mA) 5
  • Minimum Operating Supply Voltage (V) 2.7
  • Minimum Operating Temperature (°C) -40
  • Number of Channels per Chip 8
  • Number of Elements per Chip 2
  • Number of Input Enables per Chip 0
  • Number of Inputs per Chip 8
  • Number of Output Enables per Chip 2 Low
  • Number of Outputs per Chip 8
  • Output Type 3-State
  • Polarity Non-Inverting
  • Process Technology BiCMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) 5
  • Typical Operating Supply Voltage (V) 3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Buffer/Line Driver 8-CH Non-Inverting 3-ST BiCMOS 20-Pin SOIC W T/R
