74LVCE1G86W5-7

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74LVCE1G86W5-7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74LVCE1G86W5-7

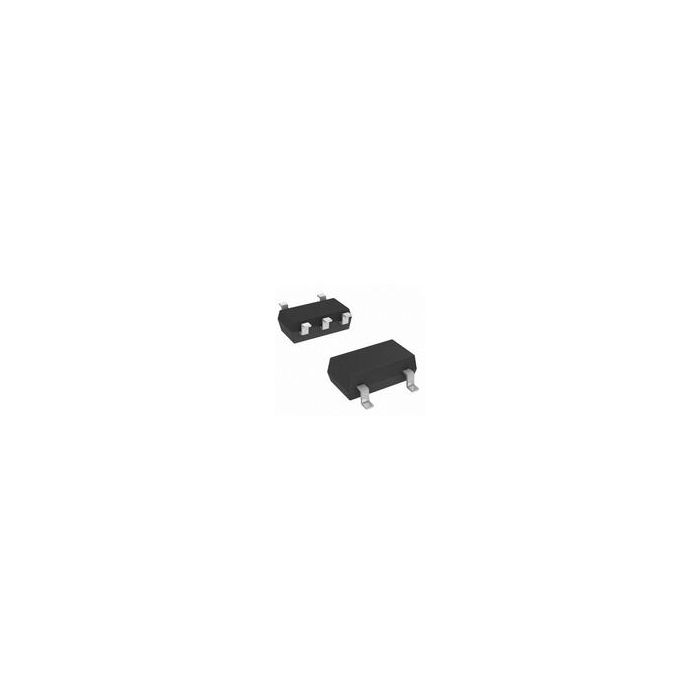

XOR Gate 1-Element 2-IN CMOS 5-Pin SOT-25 T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 9
  • Inventory 2
  • PCNs 15
  • GIDEP-Alerts 1
  • MaskPart 74LVCE1G86W57%
  • IntroductionDate Jun 01, 2010

Parametry

  • Absolute Propagation Delay Time (ns) 9.9
  • Input Type N/A
  • Logic Family LVCE
  • Logic Function XOR
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Maximum Propagation Delay Time @ Maximum CL (ns) 4.1@3.3V|3.6@5V
  • Maximum Quiescent Current (uA) 10
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.4
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 1
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description XOR Gate 1-Element 2-IN CMOS 5-Pin SOT-25 T/R
