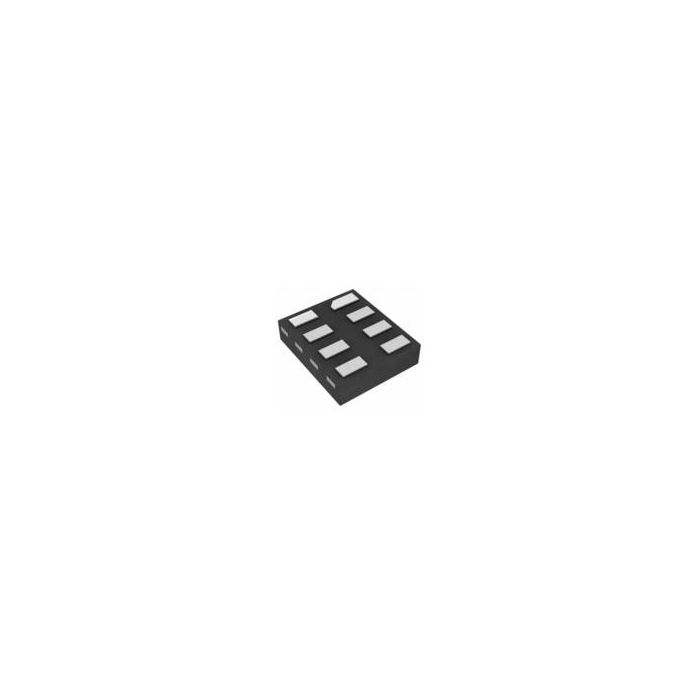

74LVC2G08RA3-7

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74LVC2G08RA3-7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74LVC2G08RA3-7

AND Gate 2-Element 2-IN CMOS 8-Pin X2-DFN T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 4
  • PCNs 14
  • MaskPart 74LVC2G08RA37%
  • IntroductionDate Jun 27, 2016

Parametry

  • Absolute Propagation Delay Time (ns) 11.3
  • Input Type N/A
  • Logic Family LVC
  • Logic Function AND
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 6.7@2.7V|5.9@3V to 3.6V|4.8@4.5V to 5.5V
  • Maximum Quiescent Current (uA) 40
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 2
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Quiescent Current (uA) 0.1
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description AND Gate 2-Element 2-IN CMOS 8-Pin X2-DFN T/R
