74LVC1G3157DW-7

Opis / 74LVC1G3157DW-7

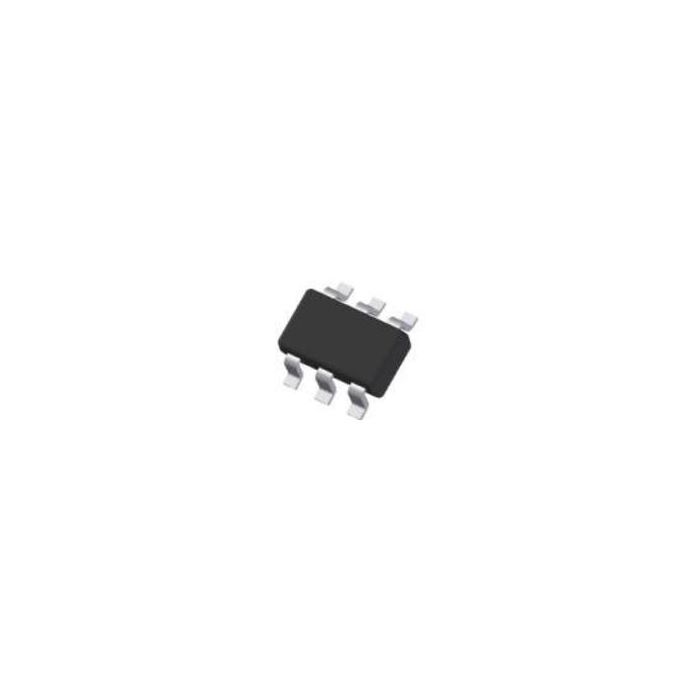

Analog Switch Single SPDT 6-Pin SOT-363 T/R

Informacje podstawowe

Chip Enable Signals Yes
Configuration Single SPDT
Function General
Input Signal Type Single
Latch-Up Proof Yes
Maximum Data Rate (Mbps) N/A
Maximum Dual Supply Voltage (V) N/R
Maximum Frequency (25°C) @ Vcc (MHz) 300(Typ)@5.5V
Maximum High Level Output Current (mA) N/A
Maximum Low Level Output Current (mA) N/A
Maximum On Resistance (Ohm) 35@1.65V
Maximum On Resistance Range (Ohm) 35 to 45
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) N/A
Maximum Propagation Delay Bus to Bus (ns) 1@5.5V/1.5@3.6V/2@2.7V/3@1.95V@-40C to 125C
Maximum Single Supply Voltage (V) 5.5
Maximum Supply Current (mA) N/A
Maximum Turn-Off Time (ns) 6(Typ)@1.95V
Maximum Turn-On Time (ns) 8.7(Typ)@1.95V
Minimum Dual Supply Voltage (V) N/R
Minimum Operating Temperature (°C) -40
Minimum Single Supply Voltage (V) 1.65
Multiplexer Architecture N/R
Number of Channels per Chip 1
Number of Inputs per Chip 2
Number of Outputs per Chip 1
Output Signal Type Single
Polarity Non-Inverting
Power Supply Type Single
Propagation Delay Test Condition (pF) N/A
Special Features Break-Before-Make
Supplier Temperature Grade N/A
Switch Architecture SPDT
Switch Control Logic Active Low/High
Switch Normal Position NO/NC
Type Analog Switch
Typical Dual Supply Voltage (V) N/R
Typical Single Supply Voltage (V) 3|5
Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania	Download
Main description	Analog Switch Single SPDT 6-Pin SOT-363 T/R
