74LVC1G14FW4-7

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74LVC1G14FW4-7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74LVC1G14FW4-7

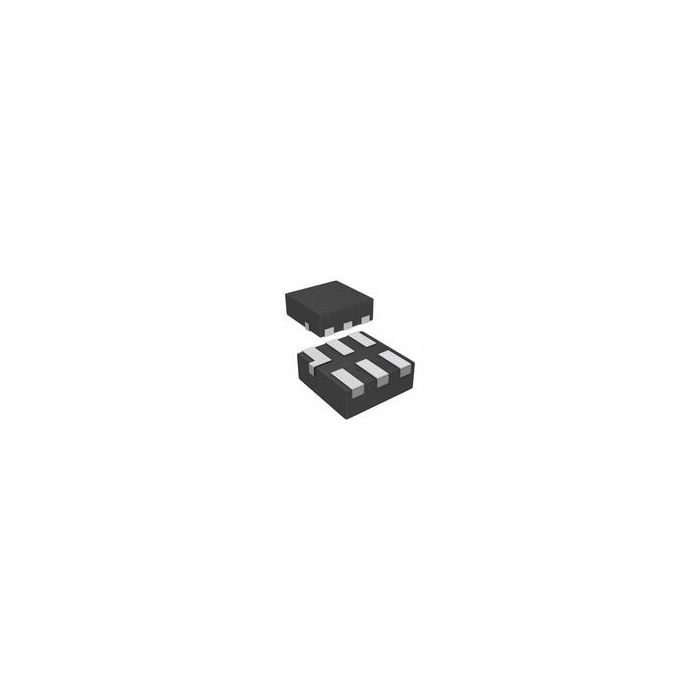

Inverter Schmitt Trigger 1-Element CMOS 6-Pin X2-DFN T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 6
  • Inventory 3
  • PCNs 16
  • GIDEP-Alerts 1
  • MaskPart 74LVC1G14FW47%
  • IntroductionDate Jan 05, 2011

Parametry

  • Absolute Propagation Delay Time (ns) 14
  • Input Type Schmitt Trigger
  • Logic Family LVC
  • Logic Function Inverter Schmitt Trigger
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 7@3.3V|6.5@5V
  • Maximum Quiescent Current (uA) 200
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Output Type Schmitt Trigger
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Inverter Schmitt Trigger 1-Element CMOS 6-Pin X2-DFN T/R
