74LVC1G08GW-Q100/H

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
74LVC1G08GW-Q100_H_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74LVC1G08GW-Q100/H

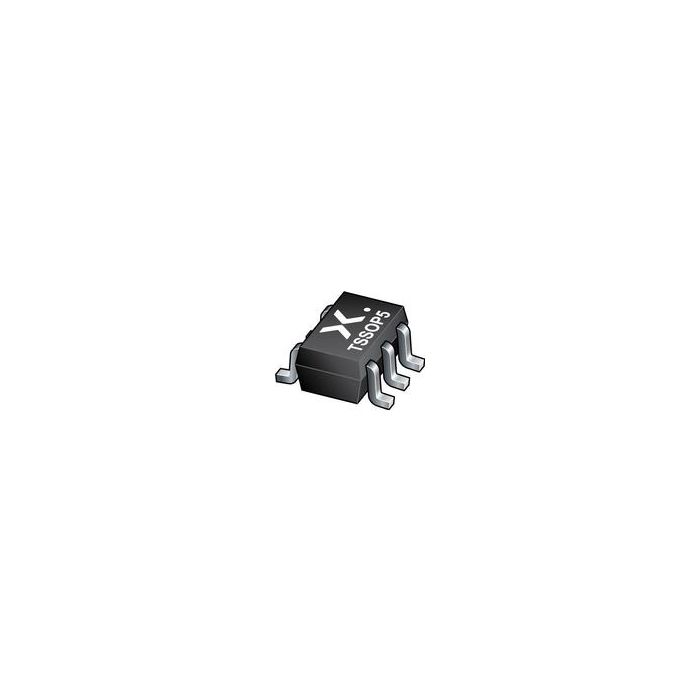

AND Gate 1-Element 2-IN CMOS Automotive 5-Pin TSSOP

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 11
  • PCNs 2
  • MaskPart 74LVC1G08GWQ100H%

Parametry

  • Absolute Propagation Delay Time (ns) 10.5
  • Input Type N/A
  • Logic Family LVC
  • Logic Function AND
  • Maximum High Level Output Current (mA) -32
  • Maximum Low Level Output Current (mA) 32
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 2.5(Typ)@2.7V|2.1(Typ)@3.3V|1.7(Typ)@5V
  • Maximum Quiescent Current (uA) 200
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 1.65
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 1
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3|5
  • Typical Quiescent Current (uA) 0.1
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description AND Gate 1-Element 2-IN CMOS Automotive 5-Pin TSSOP
