74LVC1G04Z-7
Do pobrania | Download |
---|---|
Main description | Inverter 1-Element CMOS 5-Pin SOT-553 T/R |

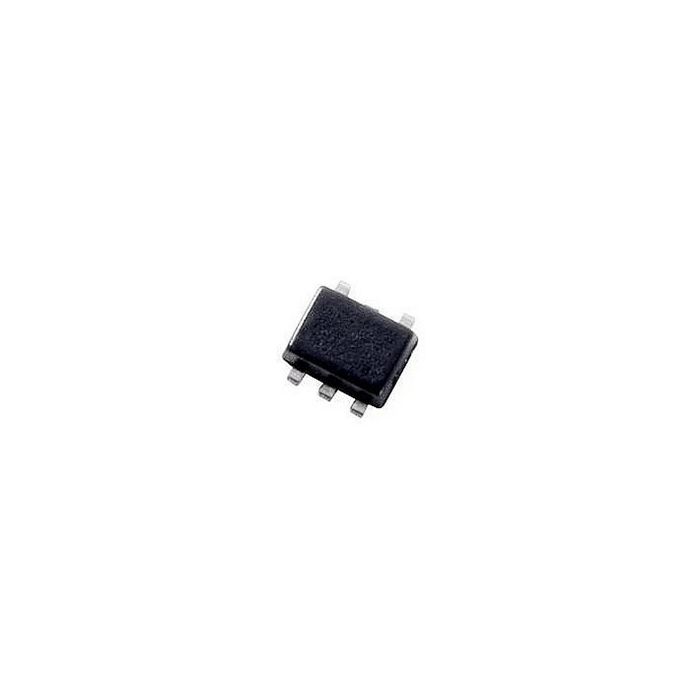

Inverter 1-Element CMOS 5-Pin SOT-553 T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 26
- Inventory 4
- PCNs 14
- MaskPart 74LVC1G04Z7%
- IntroductionDate May 20, 2010
Parametry
- Absolute Propagation Delay Time (ns) 9.5
- Input Type N/A
- Logic Family LVC
- Logic Function Inverter
- Maximum High Level Output Current (mA) -32
- Maximum Low Level Output Current (mA) 32
- Maximum Propagation Delay Time @ Maximum CL (ns) 7@2.7V|5.5@3.3V|5@5V
- Maximum Quiescent Current (uA) 200
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Output Type N/A
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
