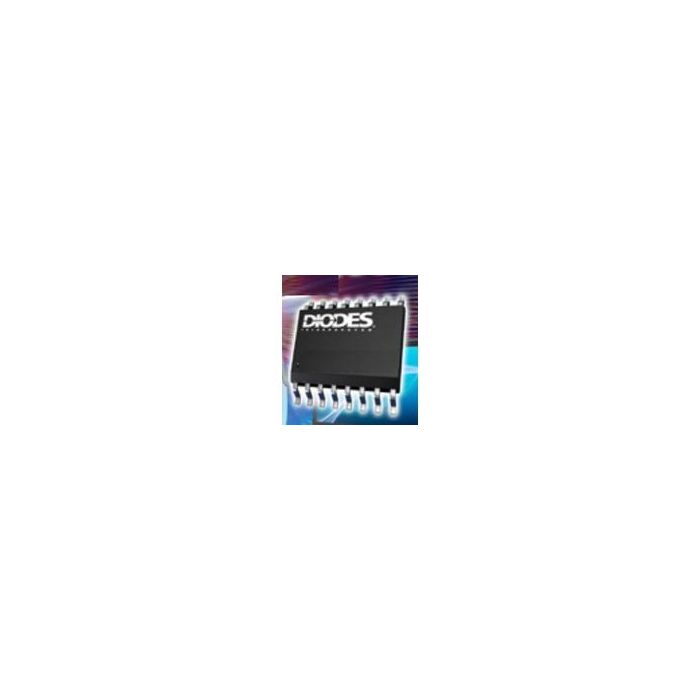

74LV132AT14-13

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74LV132AT14-13_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74LV132AT14-13

NAND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 19
  • Inventory 2
  • PCNs 14
  • MaskPart 74LV132AT1413%
  • IntroductionDate Oct 09, 2013

Parametry

  • Absolute Propagation Delay Time (ns) 23
  • Input Type Schmitt Trigger
  • Logic Family LV
  • Logic Function NAND
  • Maximum High Level Output Current (mA) -12
  • Maximum Low Level Output Current (mA) 12
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 20.2@2.5V|15.4@3.3V|9.7@5V
  • Maximum Quiescent Current (uA) 20
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 4
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description NAND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R
