74LCX125YTTR
Do pobrania | Download |
---|---|
Main description | Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS Automotive 14-Pin TSSOP T/R |

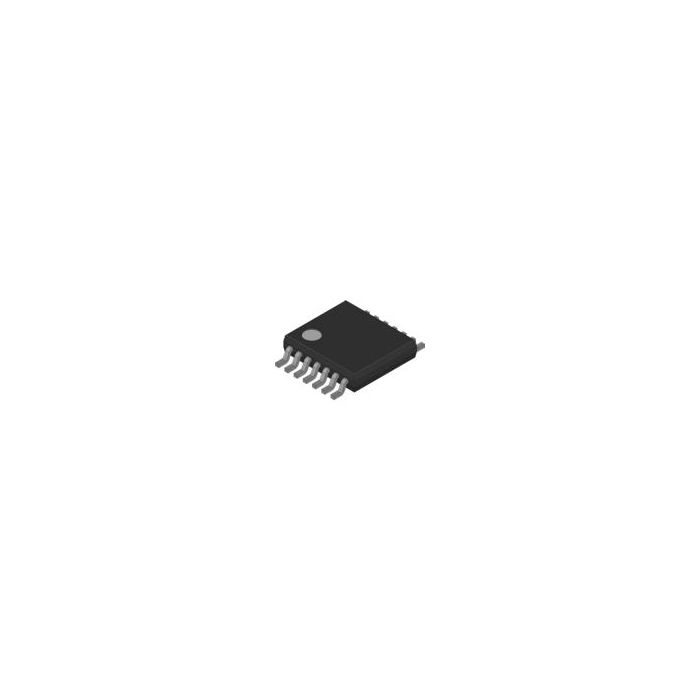

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS Automotive 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentSTMicroelectronics
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 63
- Inventory 1
- PCNs 13
- MaskPart 74LCX125YT%
Parametry
- Absolute Propagation Delay Time (ns) 6
- Bus Hold No
- Input Signal Type Single-Ended
- Logic Family LCX
- Logic Function Buffer/Line Driver
- Maximum High Level Output Current (mA) -24
- Maximum Low Level Output Current (mA) 24
- Maximum Power Dissipation (mW) N/A
- Maximum Propagation Delay Time @ Maximum CL (ns) 6@2.7V|5.2@3V to 3.6V
- Maximum Quiescent Current (uA) 10
- Maximum Supply Current (mA) N/A
- Number of Channels per Chip 4
- Number of Elements per Chip 4
- Number of Input Enables per Chip 0
- Number of Inputs per Chip 4
- Number of Output Enables per Chip 4 Low
- Number of Outputs per Chip 4
- Output Type 3-State
- Polarity Non-Inverting
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade Automotive
- Tolerant I/Os (V) 5
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
