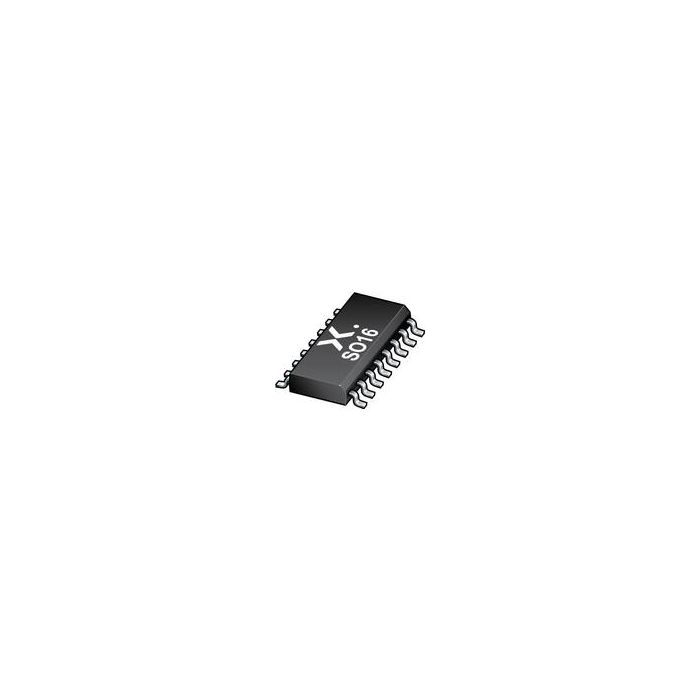

74HCT595D,118

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HCT595D,118_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74HCT595D,118

Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SO T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 14
  • Inventory 9
  • PCNs 39
  • MaskPart 74HCT595D%
  • IntroductionDate Mar 01, 2005
  • AliasParts 74HCT595D-T935009180118

Parametry

  • Absolute Propagation Delay Time (ns) 63
  • Direction Type Uni-Directional
  • Logic Family HCT
  • Logic Function Shift Register
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 42@4.5V to 5.5V
  • Maximum Quiescent Current (mA) 0.16
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Count Input Enables 0
  • Number of Element Inputs 1
  • Number of Element Outputs 9
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 8
  • Operation Mode Serial to Serial/Parallel
  • Output Type 3-State
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Reset Type Asynchronous
  • Supplier Temperature Grade N/A
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SO T/R
