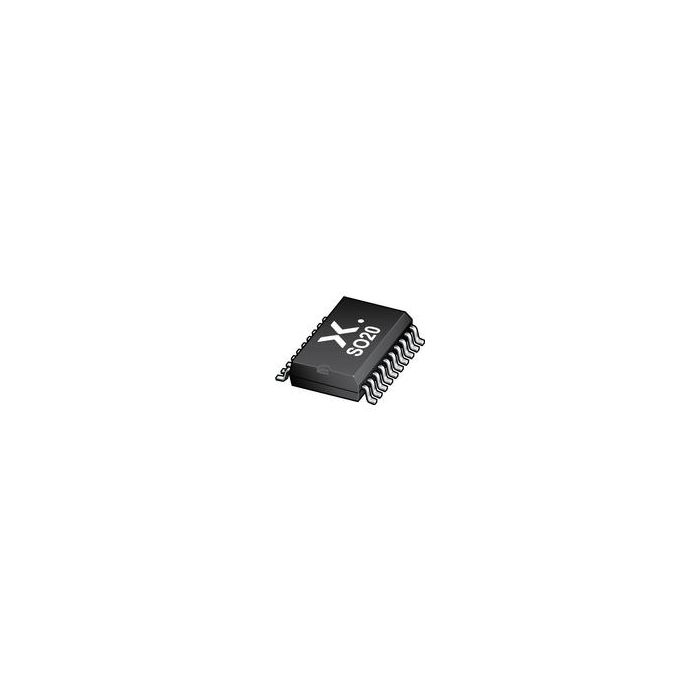

74HCT356D

ProducentNexperiaAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HCT356D_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74HCT356D

Multiplexer/Register 1-Element CMOS 3-ST 8-IN 20-Pin SO

Informacje podstawowe

  • ProducentNexperia
  • Automotive No

Informacje dodatkowe

  • Crosses 5
  • PCNs 5
  • MaskPart 74HCT356D%
  • IntroductionDate Dec 01, 1990

Parametry

  • Absolute Propagation Delay Time (ns) 95
  • Configuration 1 x 8:1
  • Input Signal Type Single-Ended
  • Logic Family HCT
  • Logic Function Multiplexer/Register
  • Maximum Dual Supply Voltage (V) N/R
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -6
  • Maximum Low Level Output Current (mA) 6
  • Maximum On Resistance (Ohm) N/A
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 51@4.5V
  • Maximum Quiescent Current (uA) 8
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Dual Supply Voltage (V) N/R
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 1
  • Number of Input Enables per Element 1
  • Number of Inputs per Chip 8
  • Number of Output Enables per Element 3
  • Number of Outputs per Chip 1
  • Number of Selection Inputs per Element 3
  • Output Signal Type Differential
  • Output Type 3-State
  • Parity Invert Input No
  • Polarity Inverting/Non-Inverting
  • Power Supply Type Single
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Tolerant I/Os (V) N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Multiplexer/Register 1-Element CMOS 3-ST 8-IN 20-Pin SO
