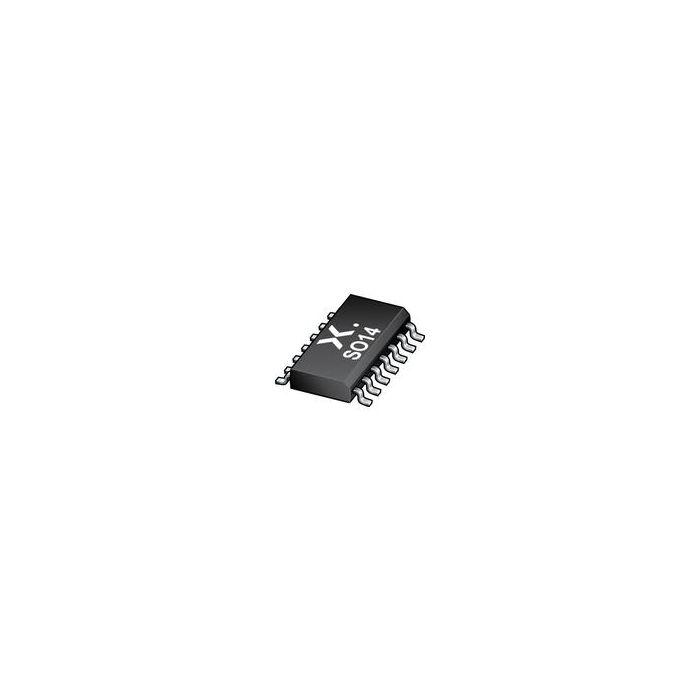

74HCT280D,653

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HCT280D,653_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74HCT280D,653

Parity Generator/Checker 9-Bit 1-Element 14-Pin SO T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 4
  • PCNs 18
  • MaskPart 74HCT280D%
  • IntroductionDate Dec 01, 1990
  • AliasParts 74HCT280D-T933713890653

Parametry

  • Absolute Propagation Delay Time (ns) 68
  • Logic Family HCT
  • Logic Function Parity Generator/Checker
  • Maximum High Level Output Current (mA) -4
  • Maximum Low Level Output Current (mA) 4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 45@4.5V
  • Maximum Quiescent Current (uA) 8
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Bits 9
  • Number of Elements per Chip 1
  • Output Type N/A
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Parity Generator/Checker 9-Bit 1-Element 14-Pin SO T/R
