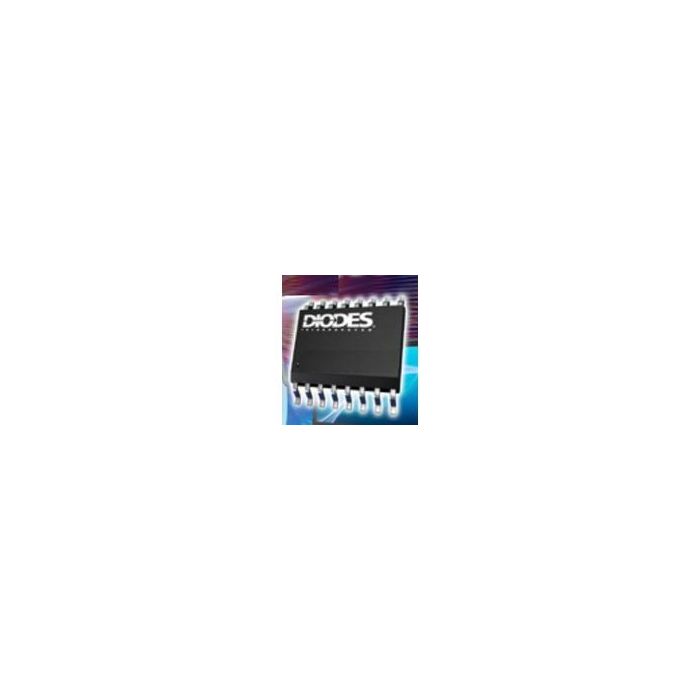

74HCT14S14-13

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HCT14S14-13_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74HCT14S14-13

Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 59
  • Inventory 3
  • PCNs 14
  • MaskPart 74HCT14S1413%
  • IntroductionDate Jan 22, 2013

Parametry

  • Absolute Propagation Delay Time (ns) 51
  • Input Type Schmitt Trigger
  • Logic Family HCT
  • Logic Function Inverter Schmitt Trigger
  • Maximum High Level Output Current (mA) -4
  • Maximum Low Level Output Current (mA) 4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 34@4.5V
  • Maximum Quiescent Current (uA) 40
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 6
  • Output Type Schmitt Trigger
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP T/R
