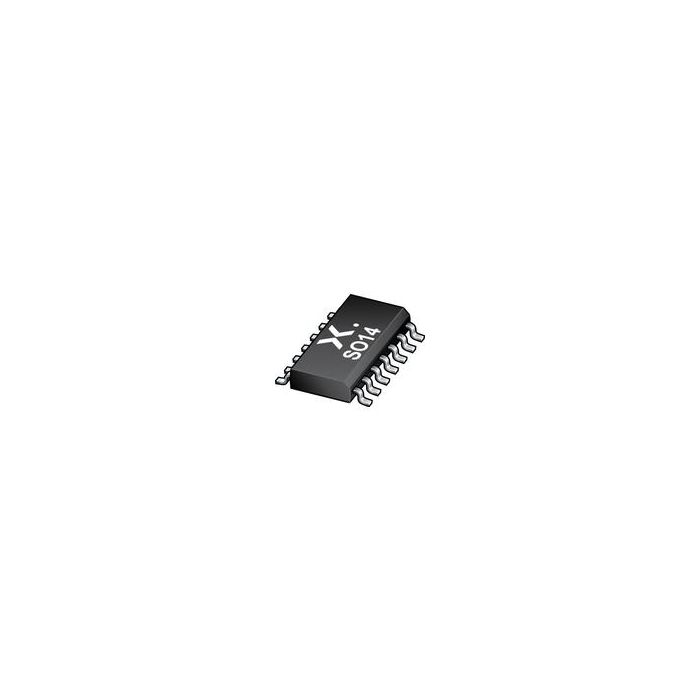

74HCT14D,653

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HCT14D,653_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74HCT14D,653

Inverter Schmitt Trigger 6-Element CMOS 14-Pin SO T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 31
  • Inventory 9
  • PCNs 40
  • MaskPart 74HCT14D%
  • IntroductionDate Aug 26, 1997
  • AliasParts 74HCT14D-T933714440653

Parametry

  • Absolute Propagation Delay Time (ns) 51
  • Input Type Schmitt Trigger
  • Logic Family HCT
  • Logic Function Inverter Schmitt Trigger
  • Maximum High Level Output Current (mA) -4
  • Maximum Low Level Output Current (mA) 4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 34@4.5V
  • Maximum Quiescent Current (uA) 2
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Elements per Chip 6
  • Output Type Schmitt Trigger
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Inverter Schmitt Trigger 6-Element CMOS 14-Pin SO T/R
