74HC280D,653

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HC280D,653_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74HC280D,653

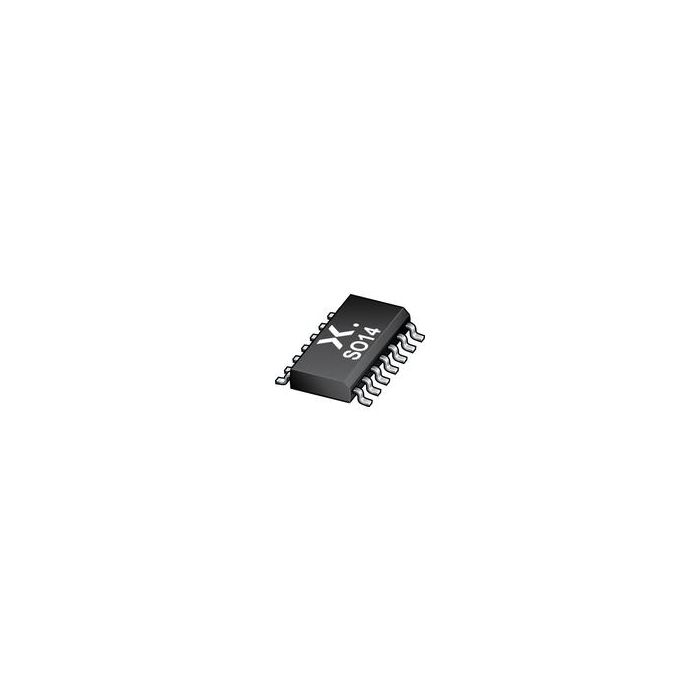

Parity Generator/Checker 9-Bit 1-Element 14-Pin SO T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 20
  • Inventory 6
  • PCNs 30
  • GIDEP-Alerts 1
  • MaskPart 74HC280D%
  • IntroductionDate Dec 01, 1990
  • AliasParts 93371388065374HC280D-T

Parametry

  • Absolute Propagation Delay Time (ns) 300
  • Logic Family HC
  • Logic Function Parity Generator/Checker
  • Maximum High Level Output Current (mA) -5.2
  • Maximum Low Level Output Current (mA) 5.2
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Propagation Delay Time @ Maximum CL (ns) 200@2V|40@4.5V|34@6V
  • Maximum Quiescent Current (uA) 8
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Bits 9
  • Number of Elements per Chip 1
  • Output Type N/A
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Parity Generator/Checker 9-Bit 1-Element 14-Pin SO T/R
