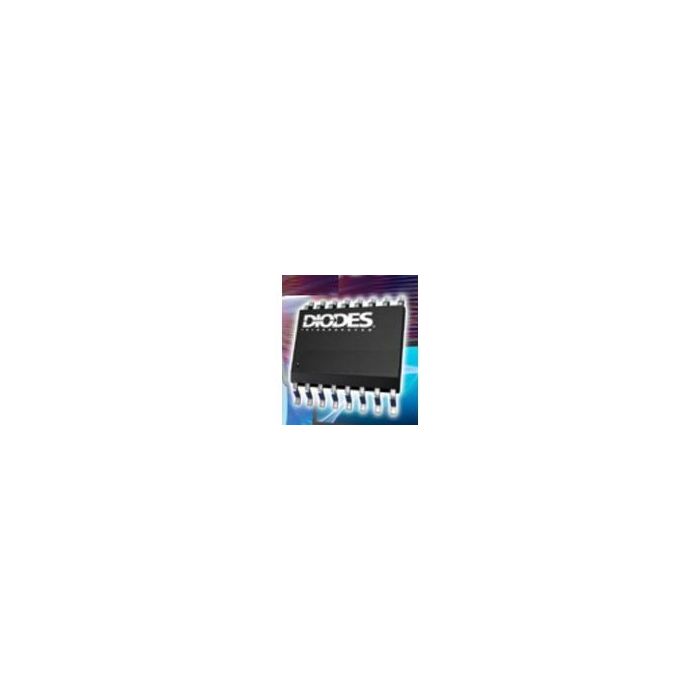

74HC164T14-13

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HC164T14-13_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74HC164T14-13

Shift Register Single 8-Bit Serial to Parallel 14-Pin TSSOP T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 15
  • Inventory 3
  • PCNs 14
  • MaskPart 74HC164T14%
  • IntroductionDate Sep 29, 2014

Parametry

  • Absolute Propagation Delay Time (ns) 255
  • Direction Type Uni-Directional
  • Logic Family HC
  • Logic Function Shift Register
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 170@2V|34@4.5V|29@6V
  • Maximum Quiescent Current (mA) 0.008
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Number of Count Input Enables 0
  • Number of Element Inputs 2
  • Number of Element Outputs 8
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 8
  • Operation Mode Serial to Parallel
  • Output Type N/A
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Reset Type Asynchronous
  • Supplier Temperature Grade N/A
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Shift Register Single 8-Bit Serial to Parallel 14-Pin TSSOP T/R
