74HC132DT

ProducentON SemiconductorEURoHSNo (2011/65/EU)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
74HC132DT_ON_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / 74HC132DT

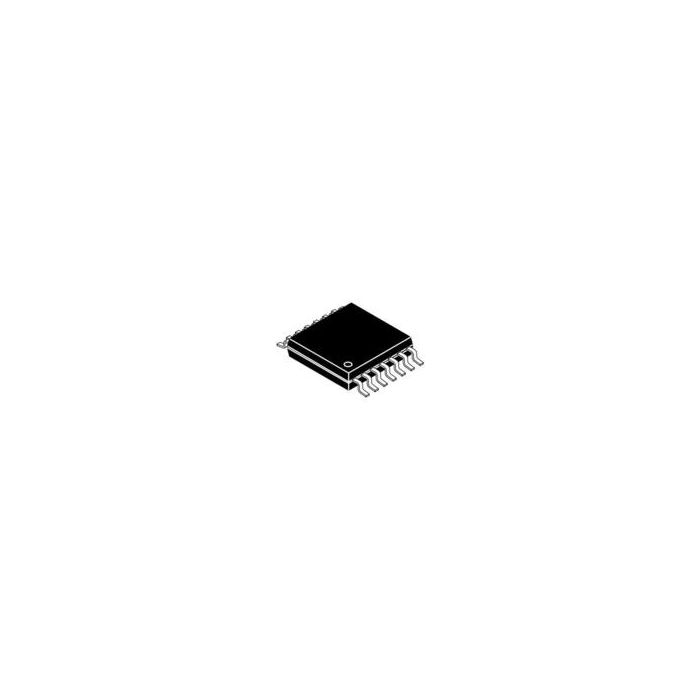

NAND Gate 4-Element 2-IN CMOS Automotive 14-Pin TSSOP

Informacje podstawowe

  • ProducentON Semiconductor
  • EURoHSNo (2011/65/EU)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 45
  • Inventory 2*
  • PCNs 16
  • MaskPart 74HC132DT%
  • IntroductionDate Mar 08, 2007
  • SupplierUrl http://www.onsemi.com/PowerSolutions/search.do?query=74HC132DT&tabbed=Y&clearFilters=Y&searchType=others

Parametry

  • Absolute Propagation Delay Time (ns) 190
  • Input Type Schmitt Trigger
  • Logic Family HC
  • Logic Function NAND
  • Maximum High Level Output Current (mA) -5.2
  • Maximum Low Level Output Current (mA) 5.2
  • Maximum Operating Supply Voltage (V) 6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 125@2V|25@4.5V|21@6V
  • Maximum Quiescent Current (uA) 2
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -65
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 4
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 0
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3|5
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description NAND Gate 4-Element 2-IN CMOS Automotive 14-Pin TSSOP
