74AUP1T97GXZ

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
74AUP1T97GXZ_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74AUP1T97GXZ

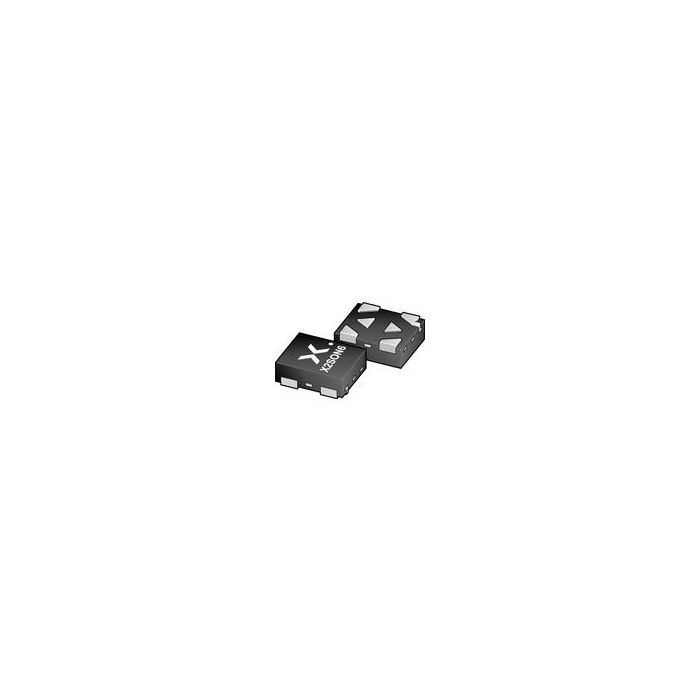

Voltage Level Translator 1-CH Unidirectional Automotive 6-Pin X2SON

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 11
  • Inventory 4
  • PCNs 3
  • MaskPart 74AUP1T97GXZ%

Parametry

  • Absolute Propagation Delay Time (ns) 11.9
  • Channel Type Unidirectional
  • Logic Family AUP
  • Logic Function Voltage Level Translator
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -4
  • Maximum Low Level Output Current (mA) 4
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 8.4@2.3V to 2.7V
  • Maximum Quiescent Current (mA) 0.0012
  • Minimum Operating Supply Voltage (V) 2.3
  • Minimum Operating Temperature (°C) -40
  • Number of Channels 1
  • Output Type N/A
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Translation N/A
  • Typical Operating Supply Voltage (V) 2.5|3.3

Więcej informacji

Do pobrania Download
Main description Voltage Level Translator 1-CH Unidirectional Automotive 6-Pin X2SON
