74AUP1T45GF

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
74AUP1T45GF_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74AUP1T45GF

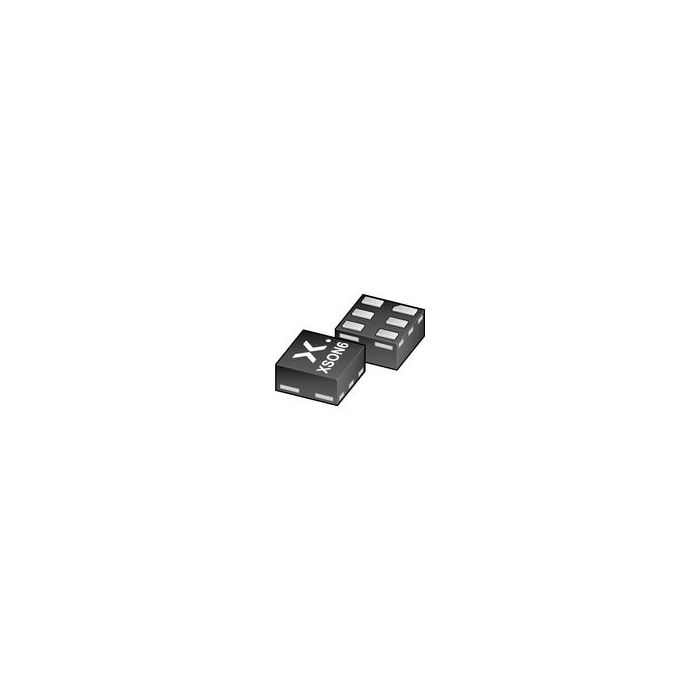

Voltage Level Translator 1-CH Bidirectional Automotive 6-Pin XSON

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 3
  • Inventory 1
  • PCNs 8
  • MaskPart 74AUP1T45GF%
  • IntroductionDate Oct 18, 2006

Parametry

  • Absolute Propagation Delay Time (ns) 40.5
  • Channel Type Bidirectional
  • Logic Family AUP
  • Logic Function Voltage Level Translator
  • Maximum Frequency (MHz) N/A
  • Maximum High Level Output Current (mA) -4
  • Maximum Low Level Output Current (mA) 4
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 36@1.1V to 1.3V
  • Maximum Quiescent Current (mA) 0.0005
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.1
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Channels 1
  • Output Type 3-State
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Translation N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3

Więcej informacji

Do pobrania Download
Main description Voltage Level Translator 1-CH Bidirectional Automotive 6-Pin XSON
