74AUP1T34GW-Q100H
Do pobrania | Download |
---|---|
Main description | Voltage Level Translator 1-CH Unidirectional Automotive 5-Pin TSSOP T/R |

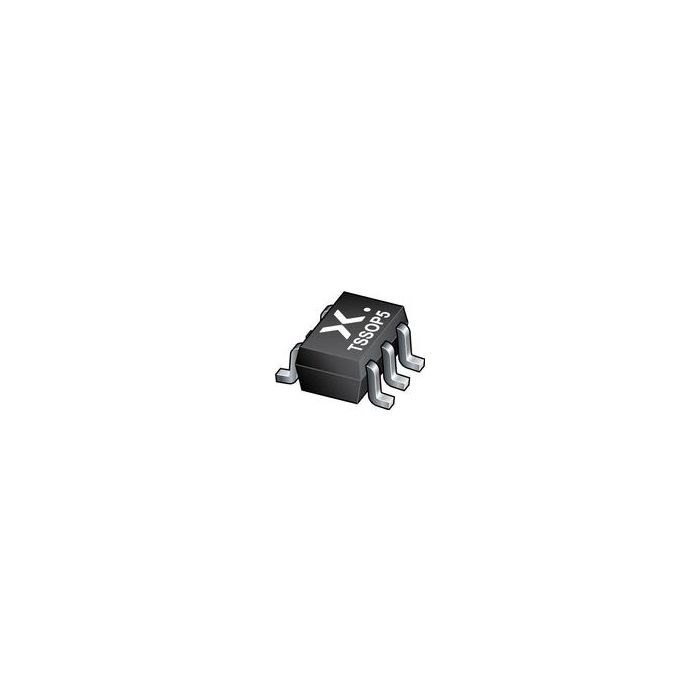

Voltage Level Translator 1-CH Unidirectional Automotive 5-Pin TSSOP T/R
Informacje podstawowe
- ProducentNexperia
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive Yes
Informacje dodatkowe
- Crosses 29
- Inventory 2
- PCNs 2
- MaskPart 74AUP1T34GWQ100%
Parametry
- Absolute Propagation Delay Time (ns) 33.5
- Channel Type Unidirectional
- Logic Family AUP
- Logic Function Voltage Level Translator
- Maximum Frequency (MHz) N/A
- Maximum High Level Output Current (mA) -4
- Maximum Low Level Output Current (mA) 4
- Maximum Propagation Delay Time @ Maximum CL (ns) 32.9@1.1V to 1.3V
- Maximum Quiescent Current (mA) 0.0005
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Number of Channels 1
- Output Type N/A
- Process Technology CMOS
- Supplier Temperature Grade Automotive
- Translation N/A
