74AUP1G98FW4-7

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74AUP1G98FW4-7_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74AUP1G98FW4-7

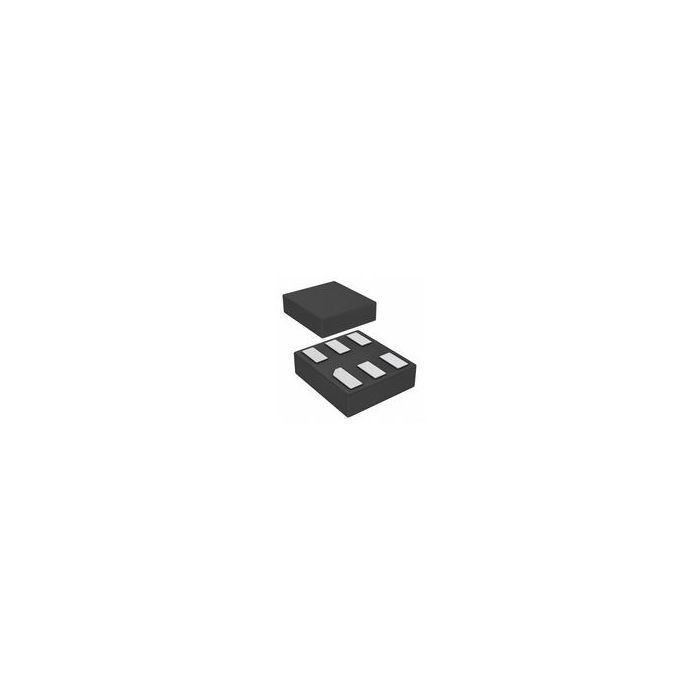

Multi Function Gate 1-Element 2-IN CMOS 6-Pin X2-DFN T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 7
  • Inventory 1
  • PCNs 14
  • MaskPart 74AUP1G98FW47%
  • IntroductionDate Jun 30, 2015
  • EnablingEnergyEfficiency No

Parametry

  • Absolute Propagation Delay Time (ns) 25.5
  • Input Type Schmitt Trigger
  • Logic Family AUP
  • Logic Function Multi Function
  • Maximum High Level Output Current (mA) -4
  • Maximum Low Level Output Current (mA) 4
  • Maximum Operating Supply Voltage (V) 3.6
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 24@1.1V to 1.3V|12.3@1.4V to 1.6V|10.1@1.65V to 1.95V|7.5@2.3V to 2.7V|6.7@3V to 3.6V
  • Maximum Quiescent Current (uA) 0.5
  • Maximum Storage Temperature (°C) 150
  • Maximum Supply Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 0.8
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Element Inputs 2-IN
  • Number of Element Outputs 1
  • Number of Elements per Chip 1
  • Number of Output Enables per Element 0
  • Number of Selection Inputs per Element 1
  • Output Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 30
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 1.8|2.5|3.3
  • Typical Quiescent Current (uA) N/A
  • Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania Download
Main description Multi Function Gate 1-Element 2-IN CMOS 6-Pin X2-DFN T/R
