74AHCT1G04W5-7
Do pobrania | Download |
---|---|
Main description | Inverter 1-Element CMOS 5-Pin SOT-25 T/R |

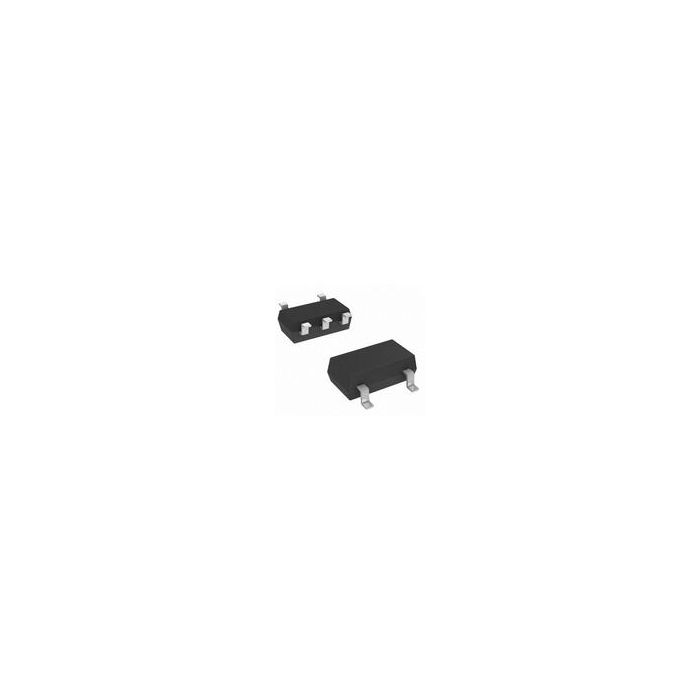

Inverter 1-Element CMOS 5-Pin SOT-25 T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 53
- Inventory 4
- PCNs 14
- MaskPart 74AHCT1G04W57%
- IntroductionDate May 26, 2011
Parametry
- Absolute Propagation Delay Time (ns) 10.05
- Input Type N/A
- Logic Family AHCT
- Logic Function Inverter
- Maximum High Level Output Current (mA) -8
- Maximum Low Level Output Current (mA) 8
- Maximum Propagation Delay Time @ Maximum CL (ns) 7.7@5V
- Maximum Quiescent Current (uA) 1
- Maximum Storage Temperature (°C) 150
- Maximum Supply Current (mA) N/A
- Minimum Storage Temperature (°C) -65
- Number of Elements per Chip 1
- Output Type N/A
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Supplier Temperature Grade N/A
- Typical Quiescent Current (uA) N/A
- Typical Supply Current (mA) N/A
