74AHC595S16-13

ProducentDiodes IncorporatedEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74AHC595S16-13_DIODES_INCORPORATED
0,00 zł

Zapytaj o ten produkt

Opis / 74AHC595S16-13

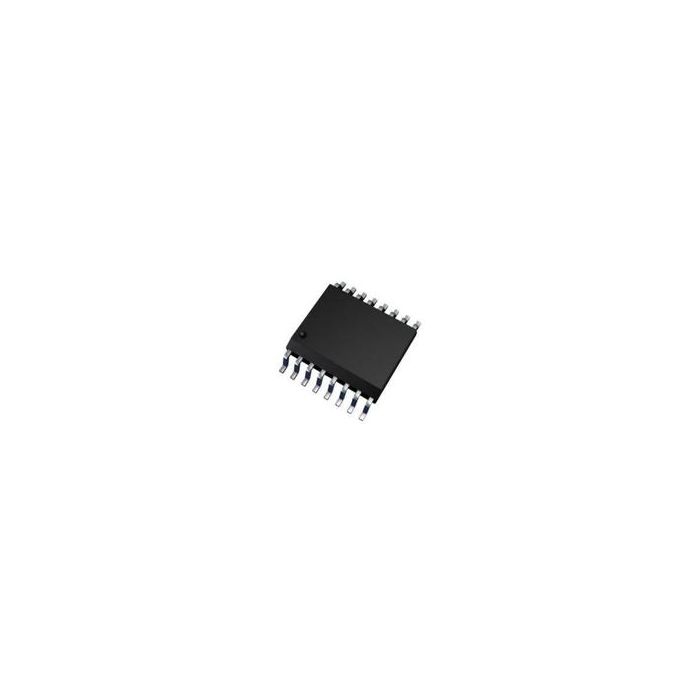

Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SO T/R

Informacje podstawowe

  • ProducentDiodes Incorporated
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 23
  • Inventory 3
  • PCNs 14
  • MaskPart 74AHC595S16%
  • IntroductionDate Jun 19, 2013

Parametry

  • Absolute Propagation Delay Time (ns) 20.1
  • Direction Type Uni-Directional
  • Logic Family AHC
  • Logic Function Shift Register
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 16.5@3V to 3.6V|10@4.5V to 5.5V
  • Maximum Quiescent Current (mA) 0.004
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Number of Count Input Enables 0
  • Number of Element Inputs 1
  • Number of Element Outputs 9
  • Number of Elements per Chip 1
  • Number of Selection Inputs per Element 0
  • Number of Stages 8
  • Operation Mode Serial to Serial/Parallel
  • Output Type 3-State
  • Parallel Enable Input No
  • Preset Type N/A
  • Process Technology CMOS
  • Propagation Delay Test Condition (pF) 50
  • Reset Type N/A
  • Supplier Temperature Grade N/A
  • Terminal Count Output No
  • Tolerant I/Os (V) N/A
  • Triggering Type Positive-Edge
  • Type N/R
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SO T/R
