74AHC164T14-13
Do pobrania | Download |
---|---|

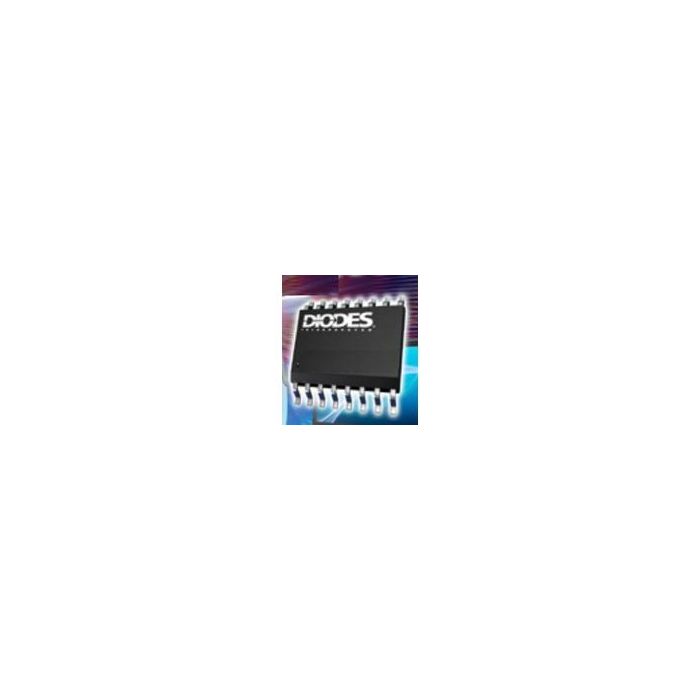

Main description | Shift Register Single 8-Bit Serial to Parallel 14-Pin TSSOP T/R |
Shift Register Single 8-Bit Serial to Parallel 14-Pin TSSOP T/R
Informacje podstawowe
- ProducentDiodes Incorporated
- EURoHSYes (2011/65/EU, 2015/863)
- Automotive No
Informacje dodatkowe
- Crosses 5
- Inventory 2
- PCNs 14
- MaskPart 74AHC164T14%
- IntroductionDate Sep 29, 2014
Parametry
- Absolute Propagation Delay Time (ns) 20.5
- Direction Type Uni-Directional
- Logic Family AHC
- Logic Function Shift Register
- Maximum Propagation Delay Time @ Maximum CL (ns) 16.3@3V to 3.6V|11@4.5V to 5.5V
- Maximum Quiescent Current (mA) 0.004
- Number of Count Input Enables 0
- Number of Element Inputs 2
- Number of Element Outputs 8
- Number of Elements per Chip 1
- Number of Selection Inputs per Element 0
- Number of Stages 8
- Operation Mode Serial to Parallel
- Output Type N/A
- Parallel Enable Input No
- Preset Type N/A
- Process Technology CMOS
- Propagation Delay Test Condition (pF) 50
- Reset Type Asynchronous
- Supplier Temperature Grade N/A
- Terminal Count Output No
- Tolerant I/Os (V) N/A
- Triggering Type Positive-Edge
- Type N/R
