74AHC125PW-Q100

Opis / 74AHC125PW-Q100

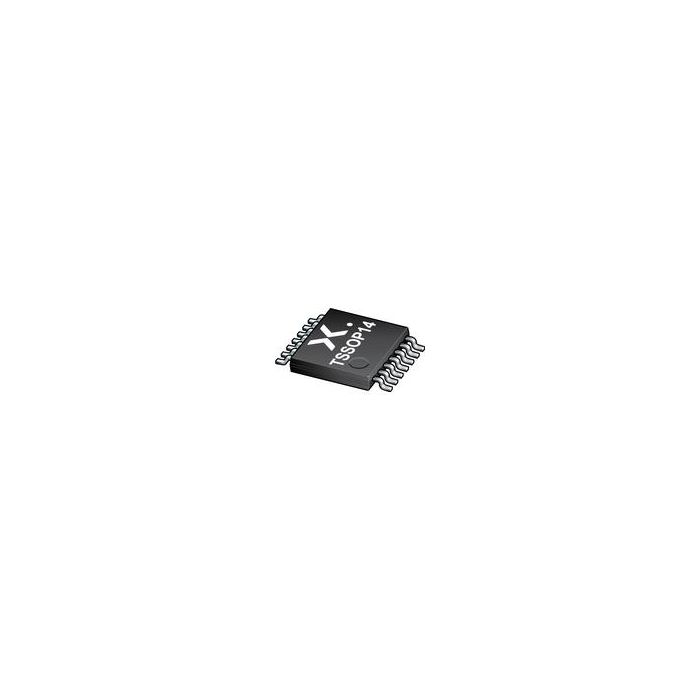

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS Automotive 14-Pin TSSOP

Informacje podstawowe

Absolute Propagation Delay Time (ns) 16.5
Bus Hold No
Input Signal Type Single-Ended
Logic Family AHC
Logic Function Buffer/Line Driver
Maximum High Level Output Current (mA) -8
Maximum Low Level Output Current (mA) 8
Maximum Operating Supply Voltage (V) 5.5
Maximum Operating Temperature (°C) 125
Maximum Power Dissipation (mW) 500
Maximum Propagation Delay Time @ Maximum CL (ns) 11.5@3V to 3.6V|7.5@4.5V to 5.5V
Maximum Quiescent Current (uA) 2
Maximum Supply Current (mA) N/A
Minimum Operating Supply Voltage (V) 2
Minimum Operating Temperature (°C) -40
Number of Channels per Chip 4
Number of Elements per Chip 4
Number of Input Enables per Chip 0
Number of Inputs per Chip 4
Number of Output Enables per Chip 4 Low
Number of Outputs per Chip 4
Output Type 3-State
Polarity Non-Inverting
Process Technology CMOS
Propagation Delay Test Condition (pF) 50
Supplier Temperature Grade N/A
Tolerant I/Os (V) N/A
Typical Operating Supply Voltage (V) 5
Typical Quiescent Current (uA) N/A
Typical Supply Current (mA) N/A

Więcej informacji

Do pobrania	Download
Main description	Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS Automotive 14-Pin TSSOP
