74AHC123ABQ,115

ProducentNexperiaEURoHSYes (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
74AHC123ABQ,115_NEXPERIA
0,00 zł

Zapytaj o ten produkt

Opis / 74AHC123ABQ,115

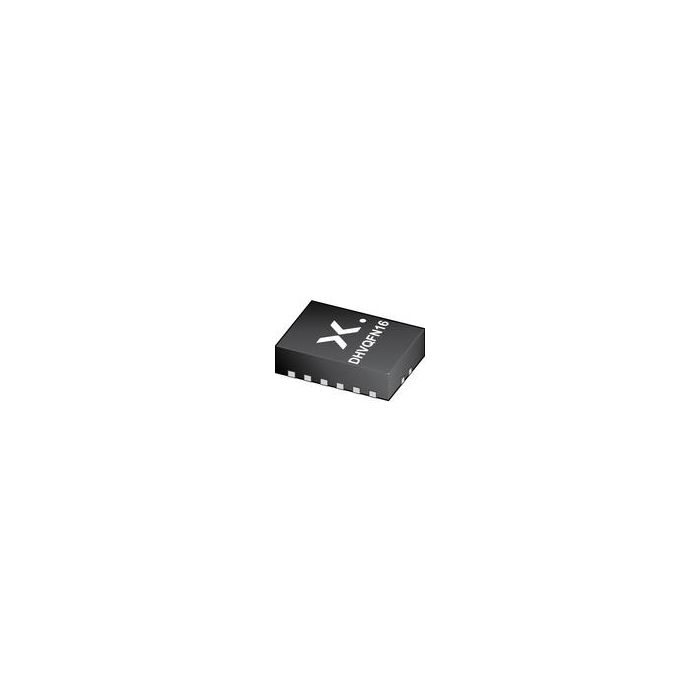

Monostable Multivibrator Dual-Element -40°C 125°C 16-Pin DHVQFN EP T/R

Informacje podstawowe

  • ProducentNexperia
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 8
  • Inventory 5
  • PCNs 18
  • GIDEP-Alerts 1
  • MaskPart 74AHC123ABQ%
  • IntroductionDate Mar 15, 2000
  • AliasParts 93528542411574AHC123ABQ-G

Parametry

  • Absolute Propagation Delay Time (ns) 32
  • Logic Family AHC
  • Logic Function Monostable Multivibrator
  • Maximum High Level Output Current (mA) -8
  • Maximum Low Level Output Current (mA) 8
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Propagation Delay Time @ Maximum CL (ns) 24.1@3.3V|14@5V
  • Maximum Quiescent Current (mA) N/A
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Number of Elements per Chip 2
  • Process Technology CMOS
  • Supplier Temperature Grade N/A
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description Monostable Multivibrator Dual-Element -40°C 125°C 16-Pin DHVQFN EP T/R
