25LC512-M/SN

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
25LC512-M_SN_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 25LC512-M/SN

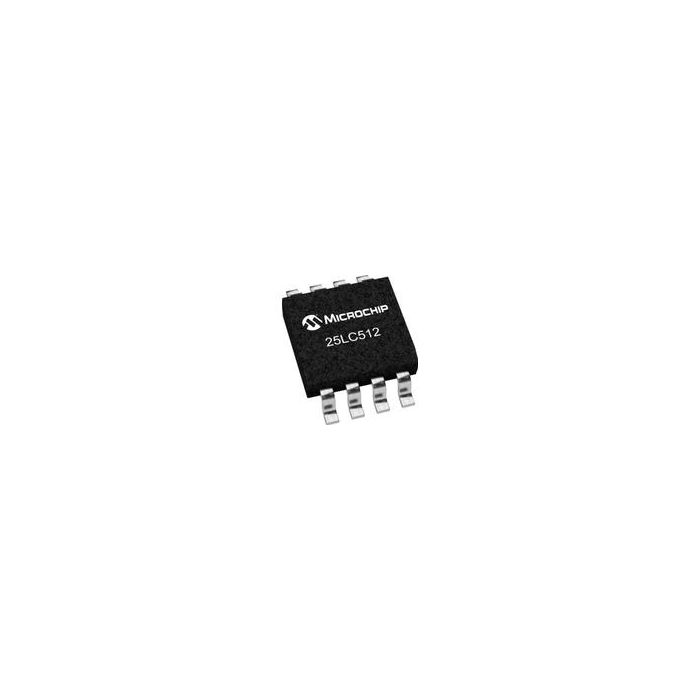

EEPROM Serial-SPI 512K-bit 64K x 8 3.3V/5V Automotive 8-Pin SOIC N Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 385
  • Inventory 5
  • PCNs 57
  • GIDEP-Alerts 7
  • MaskPart 25LC512MSN%
  • IntroductionDate Jan 01, 2000

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 512K
  • Density in Bits (bit) 524288
  • Hardware Data Protection Yes
  • Interface Type Serial-SPI
  • Maximum Access Time (ns) 50
  • Maximum Operating Current (mA) 10
  • Maximum Operating Frequency (MHz) 10
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -55
  • Organization 64Kx8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Extended
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-SPI 512K-bit 64K x 8 3.3V/5V Automotive 8-Pin SOIC N Tube
