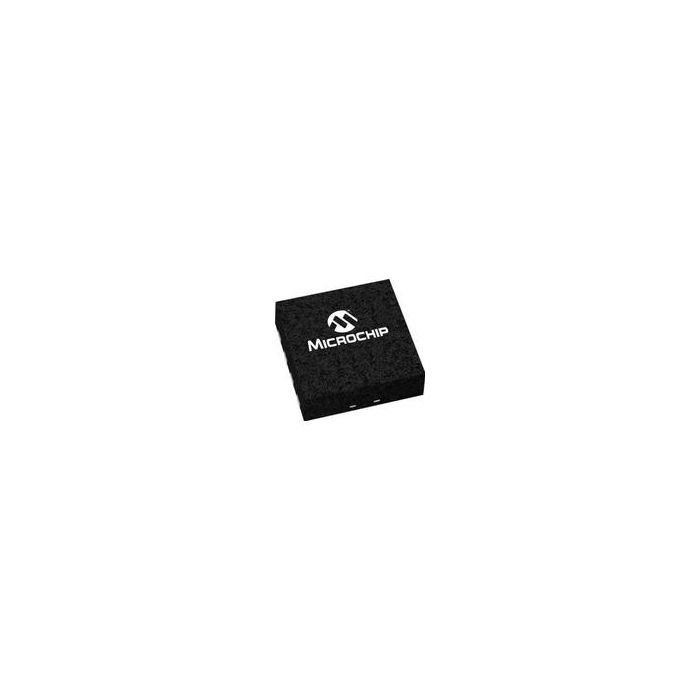

25LC040AEMC

ProducentMicrochip TechnologyAutomotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
25LC040AEMC_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 25LC040AEMC

EEPROM Serial-SPI 4K-bit 512 x 8 3.3V/5V Automotive 8-Pin DFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • Automotive Yes

Informacje dodatkowe

  • Crosses 197
  • Inventory 1*
  • PCNs 59
  • MaskPart 25LC040A%EMC
  • IntroductionDate Feb 15, 2006

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 4K
  • Density in Bits (bit) 4096
  • Hardware Data Protection Yes
  • Interface Type Serial-SPI
  • Maximum Access Time (ns) 50
  • Maximum Operating Current (mA) 5
  • Maximum Operating Frequency (MHz) 10
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 512x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Extended
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-SPI 4K-bit 512 x 8 3.3V/5V Automotive 8-Pin DFN EP
