25LC010AEP

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
25LC010AEP_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 25LC010AEP

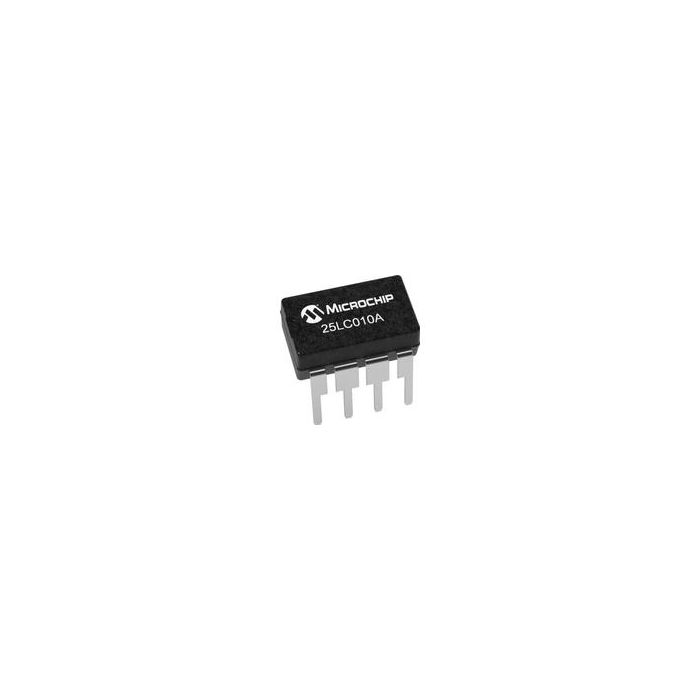

EEPROM Serial-SPI 1K-bit 128 x 8 3.3V/5V Automotive 8-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 210
  • Inventory 2
  • PCNs 67
  • GIDEP-Alerts 4
  • MaskPart 25LC010A%EP
  • IntroductionDate Feb 15, 2006

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 1K
  • Density in Bits (bit) 1024
  • Hardware Data Protection Yes
  • Interface Type Serial-SPI
  • Maximum Access Time (ns) 100
  • Maximum Operating Current (mA) 5
  • Maximum Operating Frequency (MHz) 10
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 128x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Extended
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-SPI 1K-bit 128 x 8 3.3V/5V Automotive 8-Pin PDIP Tube
