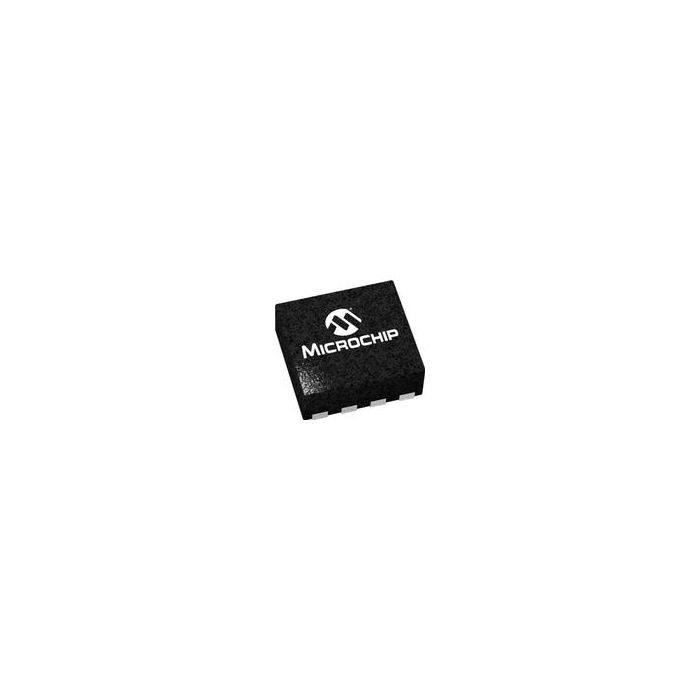

25AA640A-I/MNY

ProducentMicrochip TechnologyAutomotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
25AA640A-I_MNY_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 25AA640A-I/MNY

EEPROM Serial-SPI 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin TDFN EP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • Automotive No

Informacje dodatkowe

  • Crosses 247
  • PCNs 53
  • MaskPart 25AA640AIMNY%
  • IntroductionDate Nov 25, 2008

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 64K
  • Density in Bits (bit) 65536
  • Hardware Data Protection Yes
  • Interface Type Serial-SPI
  • Maximum Access Time (ns) 160
  • Maximum Operating Current (mA) 5
  • Maximum Operating Frequency (MHz) 10
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 85
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Organization 8Kx8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Industrial
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-SPI 64K-bit 8K x 8 2.5V/3.3V/5V 8-Pin TDFN EP Tube
