24LC024HE/MNY

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
24LC024HE_MNY_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 24LC024HE/MNY

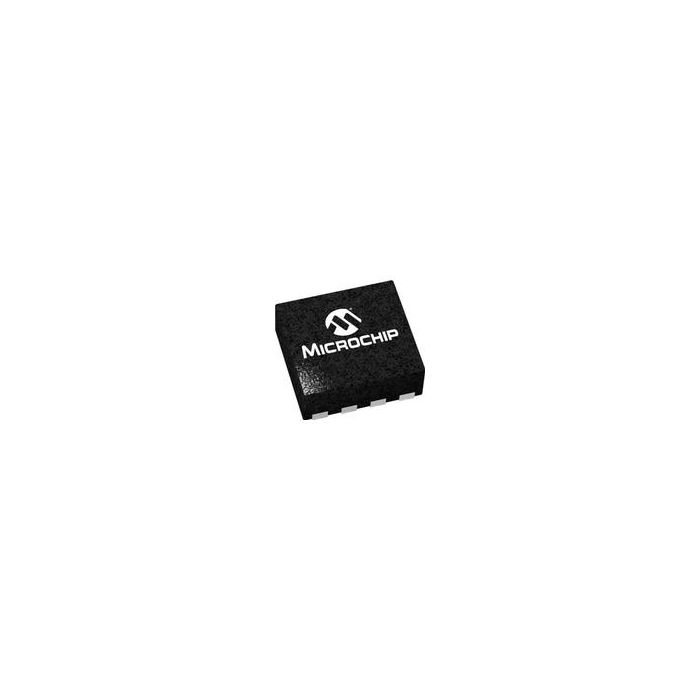

EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V Automotive 8-Pin TDFN EP

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 255
  • PCNs 53
  • MaskPart 24LC024H%EMNY
  • IntroductionDate Sep 09, 2008

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 2K
  • Density in Bits (bit) 2048
  • Hardware Data Protection Yes
  • Interface Type Serial-I2C
  • Maximum Access Time (ns) 400
  • Maximum Operating Current (mA) 3
  • Maximum Operating Frequency (MHz) 1
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Minimum Operating Supply Voltage (V) 2.5
  • Minimum Operating Temperature (°C) -40
  • Organization 256x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-I2C 2K-bit 256 x 8 3.3V/5V Automotive 8-Pin TDFN EP
