24C01C-E/MS

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
24C01C-E_MS_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 24C01C-E/MS

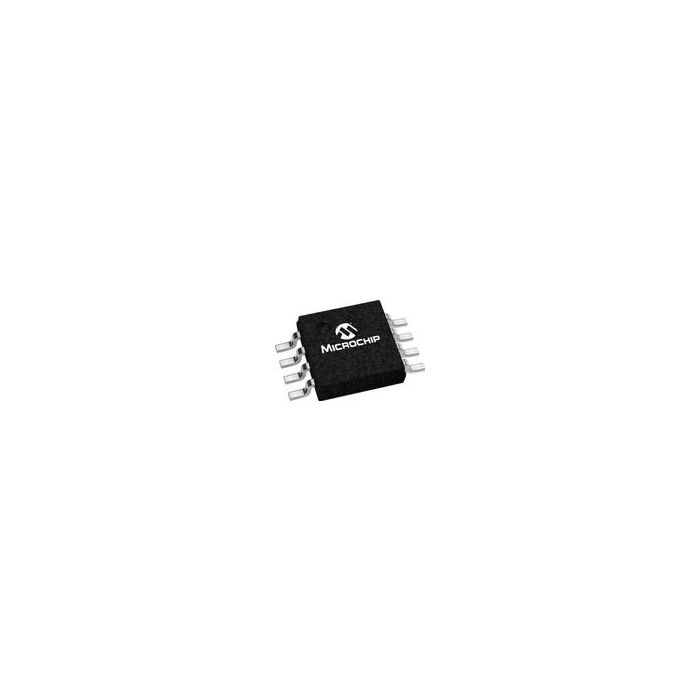

EEPROM Serial-I2C 1K-bit 128 x 8 5V Automotive 8-Pin MSOP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 183
  • Inventory 2
  • PCNs 81
  • GIDEP-Alerts 15
  • MaskPart 24C01C%EMS
  • IntroductionDate Jun 02, 1997

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 1K
  • Density in Bits (bit) 1024
  • Hardware Data Protection Yes
  • Interface Type Serial-I2C
  • Maximum Access Time (ns) 900
  • Maximum Operating Current (mA) 3
  • Maximum Operating Frequency (MHz) 0.4
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Minimum Operating Supply Voltage (V) 4.5
  • Minimum Operating Temperature (°C) -40
  • Organization 128x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) 4.5 to 5.5
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-I2C 1K-bit 128 x 8 5V Automotive 8-Pin MSOP Tube
