24AA32A/P
Do pobrania | Download |
---|---|

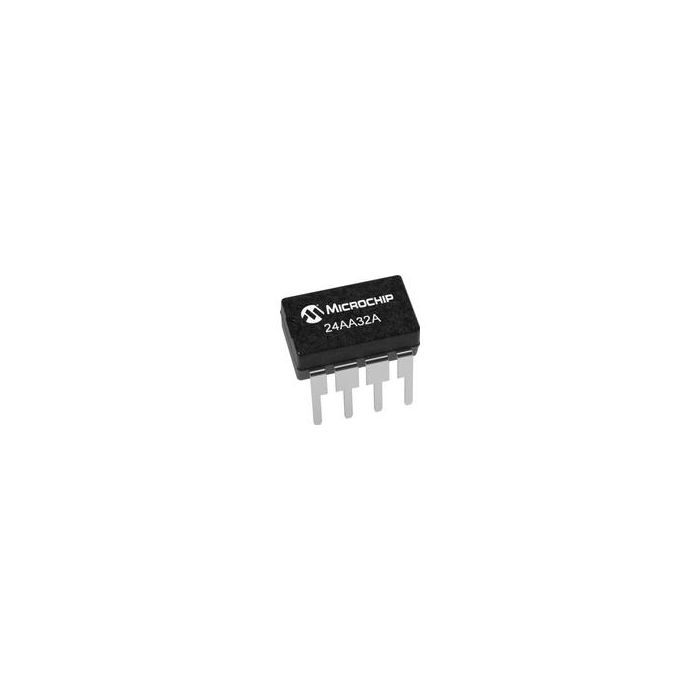

Main description | EEPROM Serial-I2C 32K-bit 4K x 8 2.5V/3.3V/5V 8-Pin PDIP Tube |
EEPROM Serial-I2C 32K-bit 4K x 8 2.5V/3.3V/5V 8-Pin PDIP Tube
Informacje podstawowe
- ProducentMicrochip Technology
- EURoHSYes (2011/65/EU)
- Automotive No
Informacje dodatkowe
- Crosses 341
- PCNs 63
- MaskPart 24AA32A%P
- IntroductionDate Sep 20, 1996
Parametry
- Data Retention (Year) 200(Min)
- Density (bit) 32K
- Density in Bits (bit) 32768
- Hardware Data Protection Yes
- Interface Type Serial-I2C
- Maximum Access Time (ns) 3500
- Maximum Storage Temperature (°C) 150
- Minimum Storage Temperature (°C) -65
- Organization 4Kx8
- Output Enable Access Time (ns) N/A
- Programmability Yes
- Programming Voltage (V) 1.8 to 5.5
- Supplier Temperature Grade Commercial
