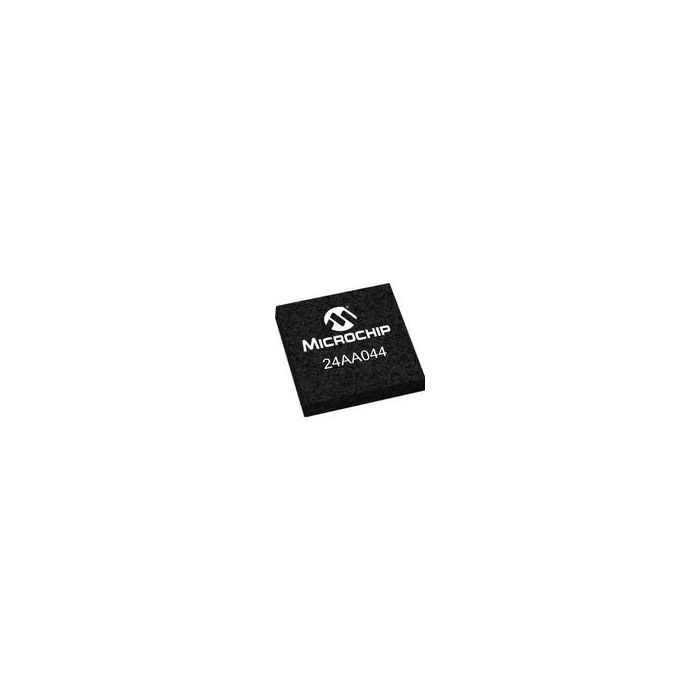

24AA044T-E/MUY

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
24AA044T-E_MUY_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 24AA044T-E/MUY

EEPROM Serial-I2C 4K-bit 512 x 8 2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 184
  • Inventory 1
  • PCNs 47
  • GIDEP-Alerts 2
  • MaskPart 24AA044%EMUY
  • IntroductionDate Apr 22, 2014

Parametry

  • Address Bus Width (bit) 2
  • Data Retention (Year) 200(Min)
  • Density (bit) 4K
  • Density in Bits (bit) 4096
  • Hardware Data Protection Yes
  • Interface Type Serial-I2C
  • Maximum Access Time (ns) 3500
  • Maximum Operating Current (mA) 0.4
  • Maximum Operating Frequency (MHz) 1
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Supply Voltage (V) 1.7
  • Minimum Operating Temperature (°C) -40
  • Minimum Storage Temperature (°C) -65
  • Organization 512x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) N/A
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-I2C 4K-bit 512 x 8 2.5V/3.3V/5V Automotive 8-Pin UDFN EP T/R
