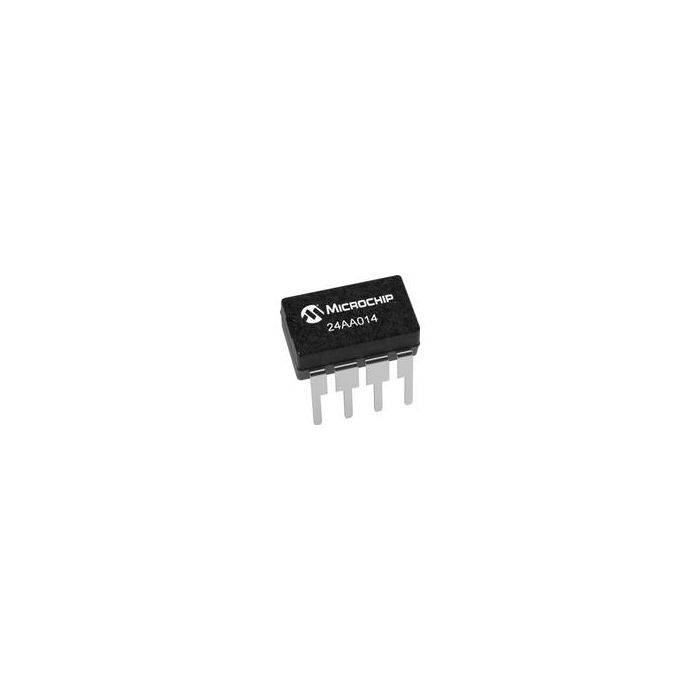

24AA014-E/P

ProducentMicrochip TechnologyEURoHSYes (2011/65/EU, 2015/863)Automotive Yes.
Powiadom mnie gdy produkt będzie dostępny
SKU
24AA014-E_P_MICROCHIP_TECHNOLOGY
0,00 zł

Zapytaj o ten produkt

Opis / 24AA014-E/P

EEPROM Serial-I2C 1K-bit 128 x 8 2.5V/3.3V/5V Automotive 8-Pin PDIP Tube

Informacje podstawowe

  • ProducentMicrochip Technology
  • EURoHSYes (2011/65/EU, 2015/863)
  • Automotive Yes

Informacje dodatkowe

  • Crosses 143
  • PCNs 49
  • MaskPart 24AA014EP%
  • IntroductionDate Dec 02, 2003

Parametry

  • Data Retention (Year) 200(Min)
  • Density (bit) 1K
  • Density in Bits (bit) 1024
  • Hardware Data Protection Yes
  • Interface Type Serial-I2C
  • Maximum Access Time (ns) 3500
  • Maximum Operating Current (mA) 3
  • Maximum Operating Frequency (MHz) 0.1
  • Maximum Operating Supply Voltage (V) 5.5
  • Maximum Operating Temperature (°C) 125
  • Minimum Operating Supply Voltage (V) 1.8
  • Minimum Operating Temperature (°C) -40
  • Organization 128x8
  • Output Enable Access Time (ns) N/A
  • Programmability Yes
  • Programming Voltage (V) 1.8 to 5.5
  • Supplier Temperature Grade Automotive
  • Typical Operating Supply Voltage (V) 2.5|3.3|5

Więcej informacji

Do pobrania Download
Main description EEPROM Serial-I2C 1K-bit 128 x 8 2.5V/3.3V/5V Automotive 8-Pin PDIP Tube
