1N5822

ProducentCentral SemiconductorEURoHSUnknown (2011/65/EU)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
1N5822_CENTRAL_SEMICONDUCTOR
0,00 zł

Zapytaj o ten produkt

Opis / 1N5822

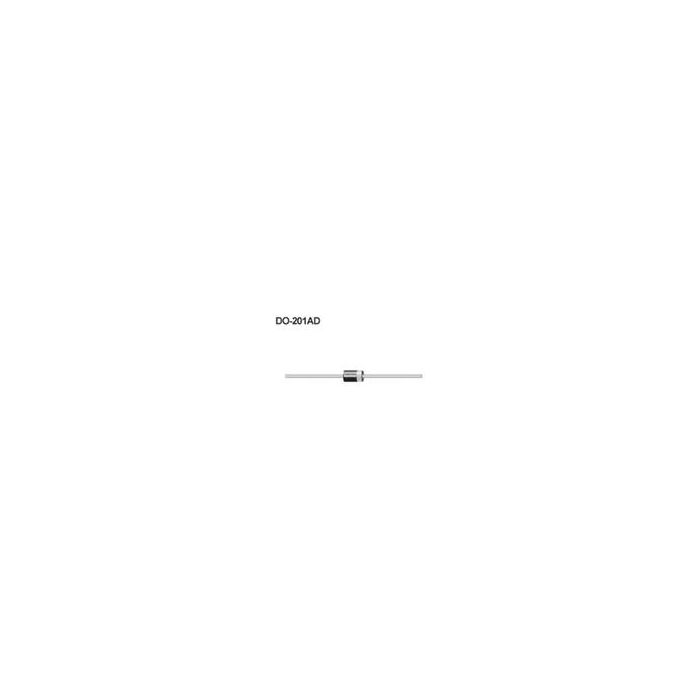

Diode Schottky 40V 3A 2-Pin DO-201AD

Informacje podstawowe

  • ProducentCentral Semiconductor
  • EURoHSUnknown (2011/65/EU)
  • Automotive No

Informacje dodatkowe

  • Crosses 313
  • MaskPart 1N5822%
  • IntroductionDate Jun 07, 2001

Parametry

  • Configuration Single
  • Maximum Continuous Forward Current (A) 3
  • Maximum Operating Temperature (°C) 150
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Operating Junction Temperature (°C) -65 to 150
  • Peak Forward Voltage (V) 0.95@9.4A
  • Peak Non-Repetitive Surge Current (A) 80
  • Peak Reverse Current (uA) 2000
  • Peak Reverse Recovery Time (ns) N/A
  • Peak Reverse Repetitive Voltage (V) 40
  • Supplier Temperature Grade N/A
  • Type Schottky Diode

Więcej informacji

Do pobrania Download
Main description Diode Schottky 40V 3A 2-Pin DO-201AD
