1N5817-TB

ProducentWon-Top ElectronicsEURoHSNo (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
1N5817-TB_WON-TOP_ELECTRONICS
0,00 zł

Zapytaj o ten produkt

Opis / 1N5817-TB

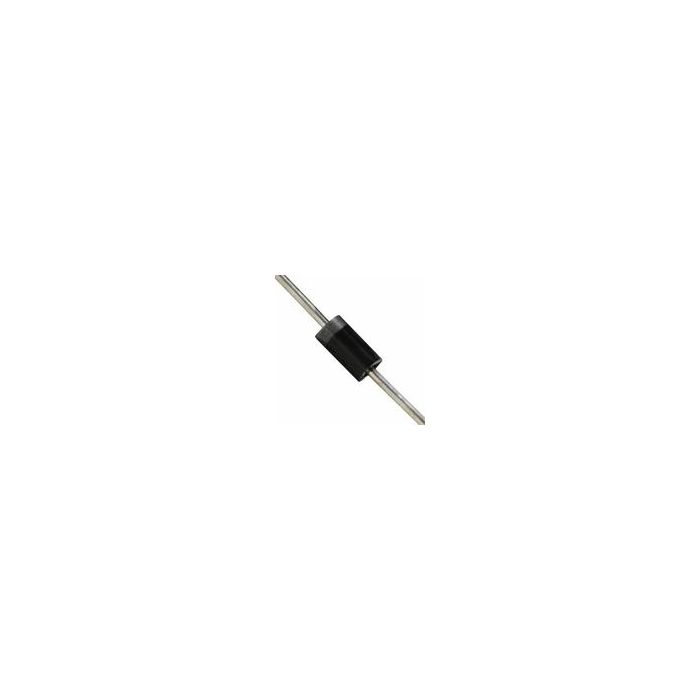

Diode Schottky 20V 1A 2-Pin DO-41 Tape and Box

Informacje podstawowe

  • ProducentWon-Top Electronics
  • EURoHSNo (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 213
  • MaskPart 1N5817%
  • IntroductionDate Dec 16, 1999

Parametry

  • Configuration Single
  • Maximum Continuous Forward Current (A) 1
  • Maximum Operating Temperature (°C) 125
  • Maximum Power Dissipation (mW) N/A
  • Maximum Storage Temperature (°C) 150
  • Minimum Operating Temperature (°C) -65
  • Minimum Storage Temperature (°C) -65
  • Operating Junction Temperature (°C) -65 to 125
  • Peak Forward Voltage (V) 0.75@3A
  • Peak Non-Repetitive Surge Current (A) 25
  • Peak Reverse Current (uA) 1000
  • Peak Reverse Recovery Time (ns) N/A
  • Peak Reverse Repetitive Voltage (V) 20
  • Supplier Temperature Grade N/A
  • Type Schottky Diode

Więcej informacji

Do pobrania Download
Main description Diode Schottky 20V 1A 2-Pin DO-41 Tape and Box
