1.5KE68A-E3/54

ProducentVishayEURoHSYes with Exemption (2011/65/EU, 2015/863)Automotive No.
Powiadom mnie gdy produkt będzie dostępny
SKU
1.5KE68A-E3_54_VISHAY
0,00 zł

Zapytaj o ten produkt

Opis / 1.5KE68A-E3/54

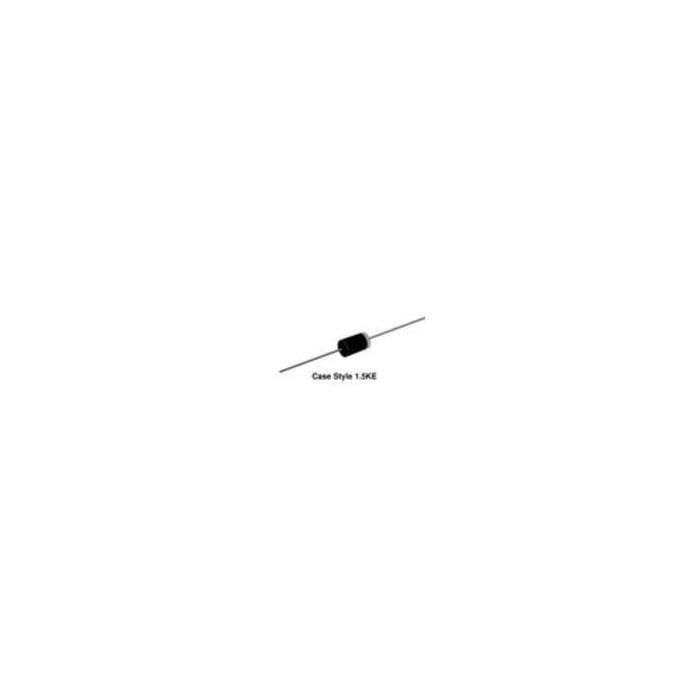

Diode TVS Single Uni-Dir 58.1V 1.5KW 2-Pin Case 1.5KE T/R

Informacje podstawowe

  • ProducentVishay
  • EURoHSYes with Exemption (2011/65/EU, 2015/863)
  • Automotive No

Informacje dodatkowe

  • Crosses 1493
  • Inventory 5
  • PCNs 23
  • MaskPart 1.5KE68AE3%
  • IntroductionDate Jan 29, 1999

Parametry

  • Configuration Single
  • Direction Type Uni-Directional
  • Maximum Breakdown Voltage (V) 71.4
  • Maximum Clamping Voltage (V) 92
  • Maximum Operating Temperature (°C) 175
  • Maximum Peak Pulse Current (A) 16.3
  • Maximum Reverse Leakage Current (uA) 1
  • Maximum Reverse Stand-Off Voltage (V) 58.1
  • Maximum Storage Temperature (°C) 175
  • Minimum Breakdown Voltage (V) 64.6
  • Minimum Operating Temperature (°C) -55
  • Minimum Storage Temperature (°C) -55
  • Number of Elements per Chip 1
  • Operating Junction Temperature (°C) -55 to 175
  • Peak Pulse Power Dissipation (W) 1500
  • Supplier Temperature Grade Commercial
  • Test Current (mA) 1

Więcej informacji

Do pobrania Download
Main description Diode TVS Single Uni-Dir 58.1V 1.5KW 2-Pin Case 1.5KE T/R
